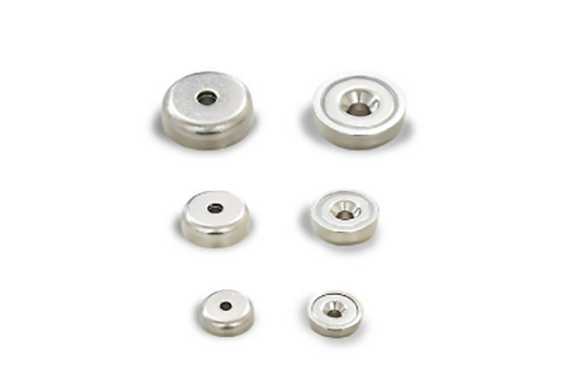

Simotec Cap Magnet
Manufacturer: Shimonishi Giken Kogyo Co., Ltd
Product name: Cap Magnet
Features
- ・Cap magnets are products with high adhesive power that combine a magnet and a yoke.
- ・The combination of magnet and iron forms a magnetic circuit, increasing the attraction force and improving performance.
- By attaching the cap, the magnetic force is concentrated on one side of the magnet, resulting in several times the attraction power compared to a single magnet of the same type and size (see left image).
- – The adhesive force is several times stronger than that of magnets without caps
(neodymium type: 2 to 4 times stronger, ferrite type: 5 to 10 times stronger) - ・Improved mechanical impact resistance
- -Available with countersunk holes, stepped holes and screw holes
Purpose of use
Mainly used for adsorption
Specification
| Part Number | Size (mm) | grade | Adsorption force (kgf) |
|---|---|---|---|
| MNCP0001 | φ16×φ3.5×5 (M3 countersink) | N35 | 5 |
| MNCP0002 | φ20×φ4.5×7 (M4 countersink) | N35 | 6 |
| MNCP0003 | φ25×φ5.5×8 (M5 countersink) | N35 | 14 |
| MNCP0004 | φ32×φ5.5×8 (M5 countersink) | N35 | twenty five |
| MNCP0005 | φ36×φ6.5×8 (M6 countersink) | N35 | 29 |
| MNCP0006 | φ42×φ6.5×9 (M6 countersink) | N35 | 37 |
| MNCP0008 | φ48×φ8.5×11.5 (M8 countersink) | N35 | 68 |
| MNCP0009 | φ60×φ8.5×15 (M8 countersink) | N35 | 112 |
| MNCP0010 | φ75×φ10.5×18 (M10 countersink) | N35 | 162 |
