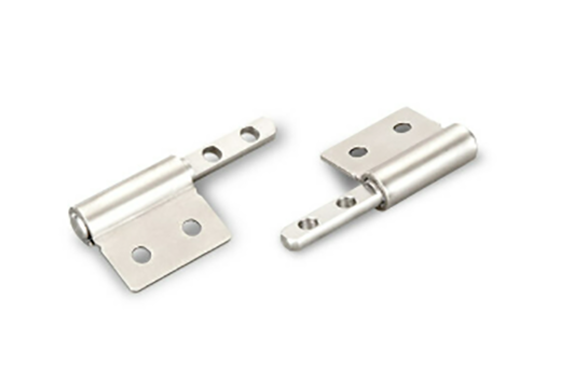

Simotec Curled Hinge

Manufacturer: Shimonishi Giken Kogyo Co., Ltd
Model: Curled Hinge

A compact, highly functional hinge that can generate different torques in the opening and closing directions

Features

– Free stop (stop at any angle) is possible over the entire range by balancing with the lid moment.
・By reducing the number of parts (only the shaft and mounting parts), space can be saved.
・It can be used in a variety of ways, taking advantage of the difference in torque depending on the opening and closing direction.
・360 degree rotation

・Device cover hinges (protection of operation parts, panel protection)
・Joints of laptop computers, etc.

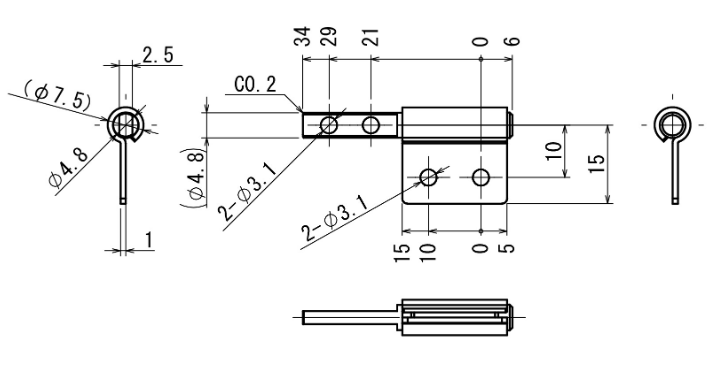

Item	TH0061	TH0067
Part Number	TH0061	TH0067
Size
	Tightening direction: 0.6 ± 0.12 N·m Opening direction: 70–80% of the above	Tightening direction: 0.7 ± 0.14 N·m Opening direction: 70–80% of the above
Durability	50,000 times, Initial value ±20%	50,000 times, Initial value ±20%
Usage environment / Storage environment	0–40°C, 10–90% RH Low temperature: –20°C High temperature & humidity: 60°C, 95% RH	0–40°C, 10–90% RH Low temperature: –20°C High temperature & humidity: 60°C, 95% RH

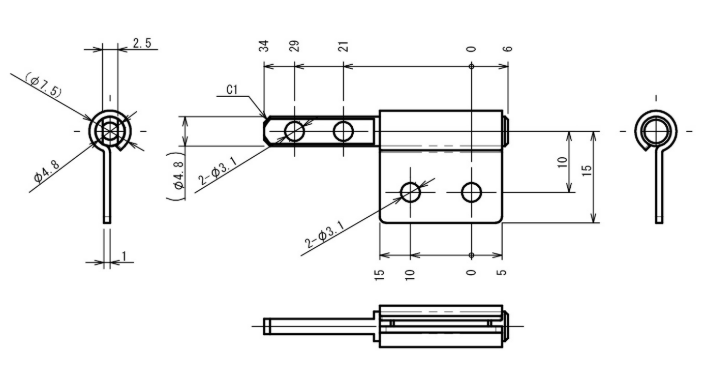

Item	TH0062	TH0068
Part Number	TH0062	TH0068
Size
Initial Torque	Tightening direction: 0.9 ± 0.18 N·m Opening direction: 70–80% of the above	Tightening direction: 1.0 ± 0.2 N·m Opening direction: 70–80% of the above
Durability	50,000 times, Initial value ±20%	50,000 times, Initial value ±20%
Usage environment / Storage environment	0–40°C, 10–90% RH Low temperature: –20°C High temperature & humidity: 60°C, 95% RH	0–40°C, 10–90% RH Low temperature: –20°C High temperature & humidity: 60°C, 95% RH

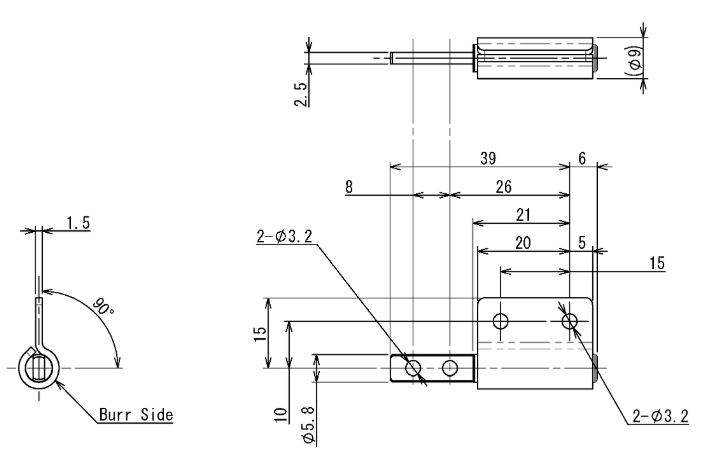

Item	SS0040
Part Number	SS0040
Size
Initial Torque	Tightening direction: 2.0 ± 25% N·m Opening direction: 70–80% of the above
Durability	5,000 times, Initial value ±20%
Usage environment / Storage environment	5–35°C, 10–90% RH Low temperature: –20°C High temperature & humidity: 60°C, 95% RH
