Simotec Ferrite Magnet
Manufacturer: Shimonishi Giken Kogyo Co., Ltd

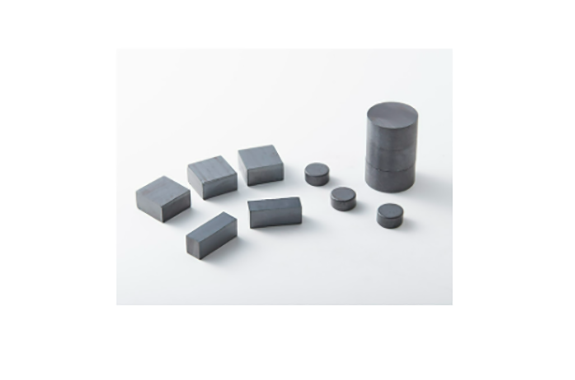

Product name: Ferrite Magnet
Features
- Ferrite magnets are magnets made by turning iron oxide into fine powder, molding it, and sintering it.
- Anisotropic ferrite magnets are magnets that have strong magnetic force only in a specific direction.
- Anisotropic ferrite magnets are currently the most popular magnets, widely used for a wide range of purposes due to their reasonable price.
- – It has relatively stable magnetic properties and is resistant to rust.
- – When using in an environment below -30°C, care must be taken to prevent demagnetization at low temperatures.
- – It has low mechanical strength and is prone to breaking like ceramic, so care must be taken when handling it.
Purpose of use
・Motors, sensors, speakers, etc.
specification

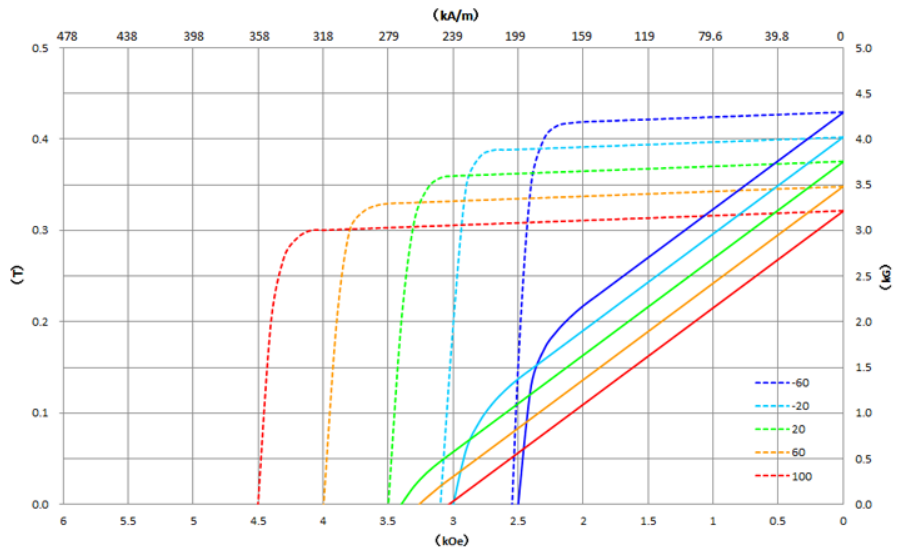

Comparison of demagnetization curves due to temperature difference for four anisotropic ferrite magnets
Ferrite magnetic properties
| Material Grade | Residual magnetic flux density (Br) | Coercive force (Hcb) | Coercive force (Hcj) | Maximum energy product (BH) max | Temperature coefficient (αBr) | Curie Temperature | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| kg | mT | kOe | kA/m | kOe | kA/m | MGOe | kJ/m3 | %/℃ | °C | |
| Wet anisotropic 4-material | 3.75-4.00 | 375-400 | 3.14-3.44 | 250-274 | 3.26-3.58 | 260-285 | 3.4-3.9 | 27-31 | -0.20 | 450 |
| Wet anisotropic 6 materials | 4.10-4.30 | 410-430 | 3.65-3.95 | 290-314 | 3.85-4.15 | 306-330 | 4.0-4.4 | 31-35 | -0.20 | 450 |
