Simotec Forced Air Cooling Unit (Vertical Type)
Manufacturer: Shimonishi Giken Kogyo Co., Ltd
Product name: Forced Air Cooling Unit (Vertical Type)
overview
The heat pipes efficiently transfer heat to the fins,
and when combined with an axial fan, they achieve high heat dissipation.
Features
- Thin laminated fins have low ventilation resistance, so the number of fins can be increased to expand the surface area.
- By using a large axial flow fan, it is possible to make the unit relatively quiet.
Purpose of use
Suitable for cooling high wattage heat sources.
- ・Forced air cooling
- ・CPU, GPU, server, power supply, power semiconductor, etc.
Design example

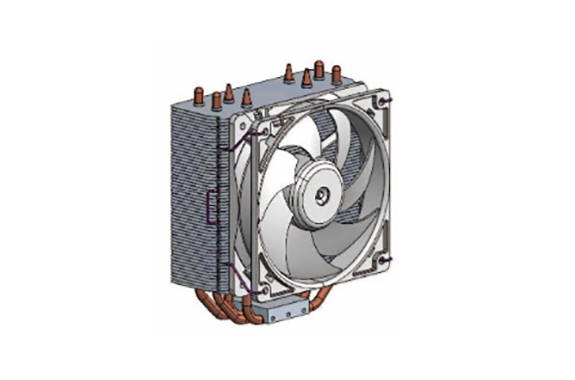

| Supported heat output | Structural diagram | External dimensions (reference value) W x D x H | Thermal resistance (reference value) |
|---|---|---|---|
| ~250W |  | 130 x 76 x 148 mm (excluding protrusions) | 0.15℃/W |
