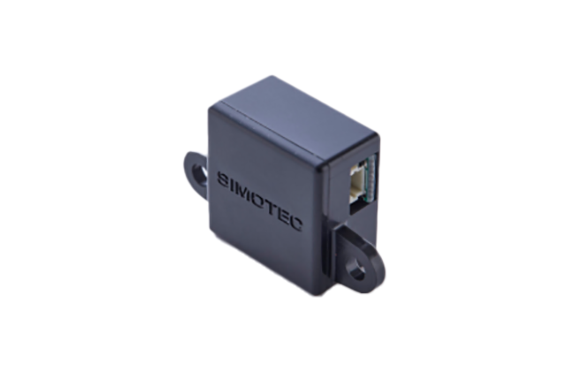

Simotec Magnetic Flux Fluctuation Detection Displacement Sensor JS I (JS One)

Manufacturer: Shimonishi Giken Kogyo Co., Ltd
Product name: Magnetic Flux Fluctuation Detection Displacement Sensor JS I

Features

High-response displacement sensor that can detect minute displacements of 0.1 mm or less
The displacement of the probe is output as an analog signal.
Detects by contacting the target object, so it can detect even when it is in close contact with the object
Ideal for detecting thin workpieces in assembly line work
Can distinguish between thick and thin paper
No need to adjust the position after placing this product
One package saves space
It is a concentrated magnetic field fluctuation type displacement sensor, so it is dust-resistant and has a design that is difficult to break down.

Purpose of use

Information and communication equipment such as printers that handle paper
Printing machines for newspapers and posters
Manufacturing processes for fabric materials such as clothing and textiles
Manufacturing processes for steel plates, plastics, and other sheet metal

It is used for sensing thin objects in the same way as an ultrasonic sensor.

Specification

RoHS compliant

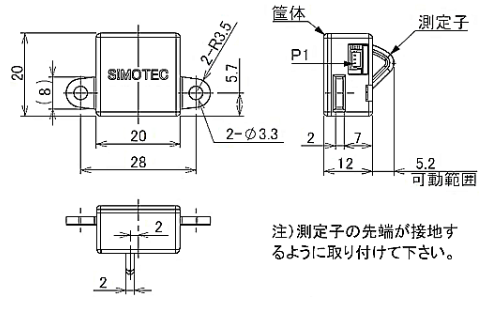

size		Length 20mm x Width 20mm x Height 12mm (See the diagram below for detailed dimensions)
weight		3.3g
Displacement detection method		Magnetic flux fluctuation detection
Probe movement range		5.2 mm or less
Probe force		0.5N or less
Gauge head material		POM
Housing Material		ABS
Workpiece thickness detection accuracy (standard)		50μm or less
Input voltage Vc		DC 3.3V
Output Voltage		Analog Voltage
Connector (made by JST)		SM03B-SRSS-TB (3 poles)
Pin assignment	P1	Vout
	P2	GND
	P3	Vc
Analog output voltage range Vout		1.5 to 3.3V
Responsiveness		3 msec
Output Temperature Coefficient		-0.5%/℃
Operating environment temperature		-20 to 60°C (no condensation)
Operating environment humidity		0 to 80% RH (no condensation)
