Simotec Natural Cooling Unit (C-type Pipe Type)
Manufacturer: Shimonishi Giken Kogyo Co., Ltd
Product name: Natural Cooling Unit (C-type Pipe Type)
Overview

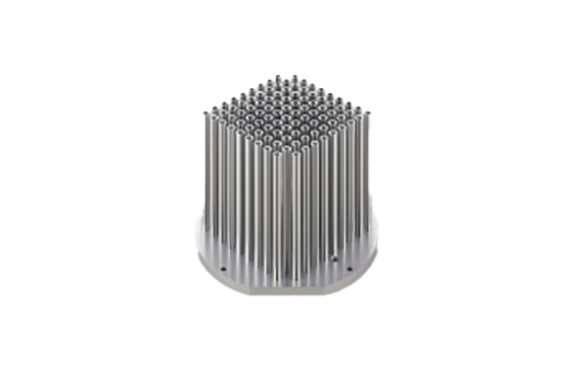

This heat sink has fins with unique cross-sectional shapes fixed to a base plate.
It is possible to design the optimum size of the base plate, fin height, number, pitch, etc. depending on the usage environment.
Features
- ・High performance design is possible because tall fins can be created
- – The unique cross-sectional shape of the fins makes them highly rigid and suitable for use in a variety of environments.
- – The main components are made entirely of aluminum, making them resistant to rust and corrosion and suitable for use outdoors or in high humidity environments.
Purpose of use
- Suitable for applications requiring high heat dissipation performance through natural air cooling.
- ・LEDs, communication devices, etc.

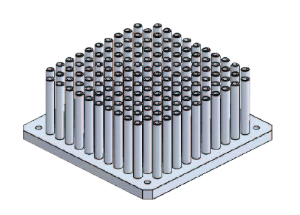

Design example
The heat receiving surface is the bottom surface of the diagram
| Supported heat output | Structural diagram | External dimensions (reference value) W x D x H | Thermal resistance (reference value) |
|---|---|---|---|
| ~250W |  | 250×250×250mm | 0.16℃/W |
| ~200W |  | 250×250×100mm | 0.22℃/W |
| ~45W |  | 100×100×100mm | 0.98℃/W |
