Manufacturer: Shimonishi Giken Kogyo Co., Ltd

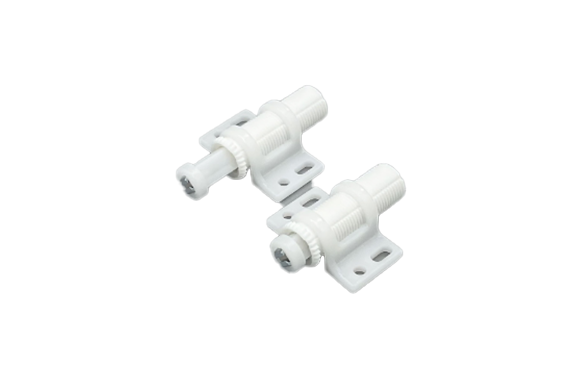

Product name: Push-type Magnetic Latch

Features

• The door can be easily opened by simply pushing it
• The smallest size in the industry with the highest suction power (1 kg for M11 size)
• ・Installation is easy once the mounting holder is attached, and the distance to the door can be adjusted with one touch.

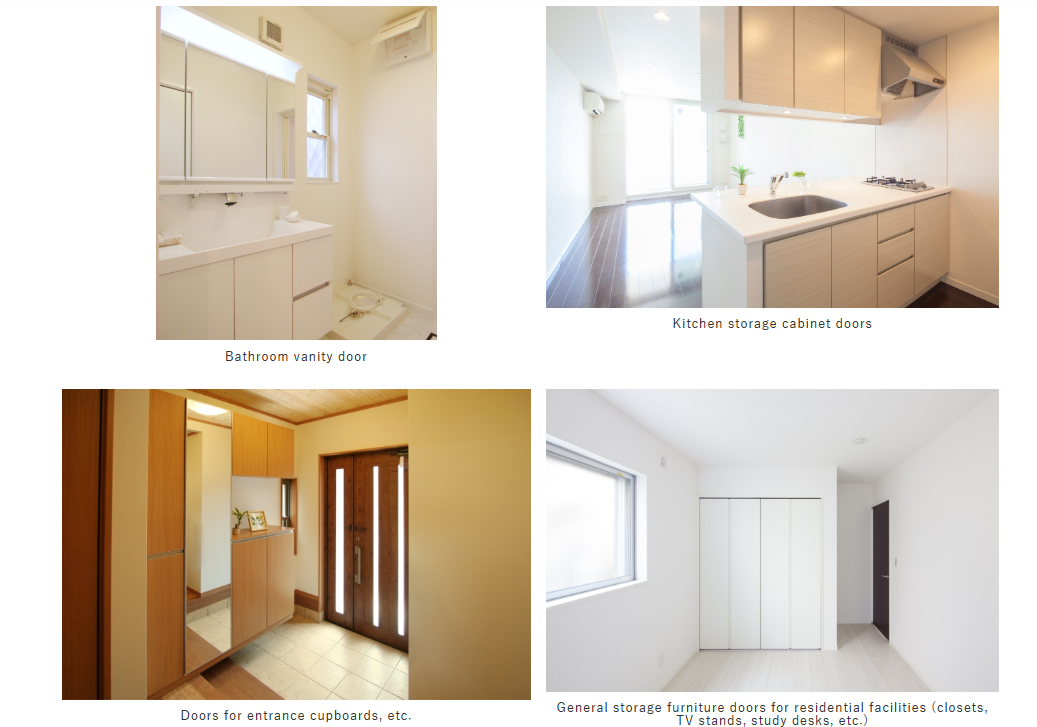

Purpose of use

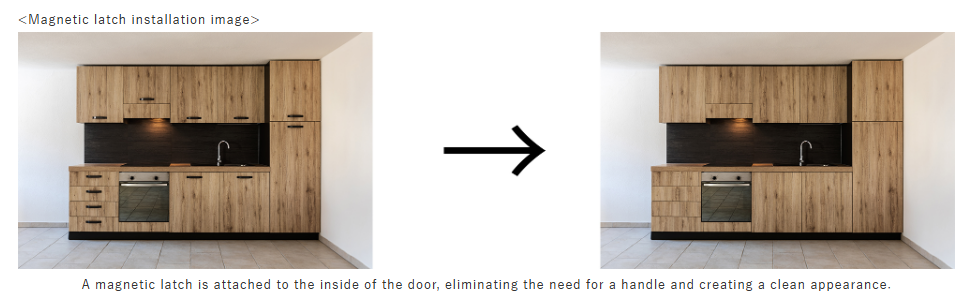

Benefits of use

Doors can be opened and closed without the need for handles, knobs or grips, allowing for a clean appearance (giving greater freedom in furniture design, such as creating a sense of style and luxury). Even if you are unable to pinch or grip the door, you can open and close it with one touch using your palm, elbow, foot, etc.

Specification

RoHS compliant

Part Number	SS0082-A01
Appearance color	natural
Adsorption power	Approximately 0.7 kgf per piece *Measured by our measuring instrument

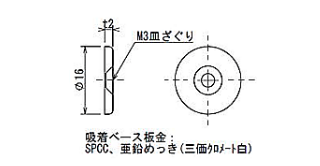

Adsorption plate (door side) *Sold separately	φ16×t2.0 (center fixed with M3 flat head tapping screw)
Adjustable distance from the door	0 to 15 mm
Adsorption position	Comes with a 1/4 turn (0.25 mm) click mechanism. *Please consult us separately regarding the relative mounting positions of the suction plate and main body.
Projection stroke amount	10mm
Durability life	100,000 times
Pilot hole for installation	M3 x 4 (for dedicated adapter) *When installing, adjust the pilot holes according to the cabinet material before deciding.

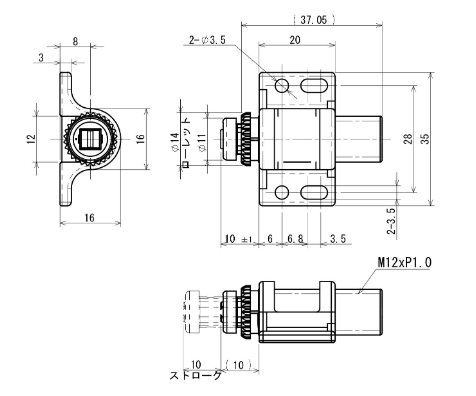

Body size	φ12mm x 56mm (maximum stroke)

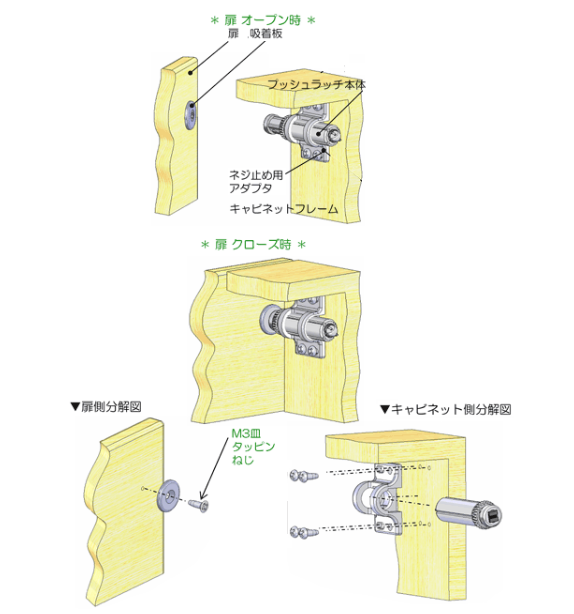

Installation Instructions
