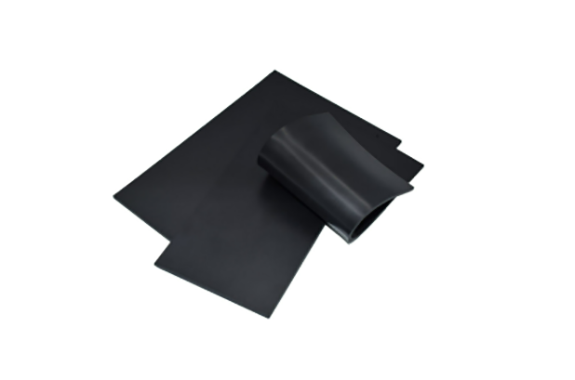

Simotec Radiation Shielding Rubber Sheet
Manufacturer: Shimonishi Giken Kogyo Co., Ltd
Product name: Radiation Shielding Rubber Sheet
Features
- This is a radiation shielding material made by filling highly safe barium sulfate into rubber.
- Made of rubber material, it has excellent flexibility and workability.
- It is an environmentally friendly product as it does not contain lead, halogens, or substances subject to the revised RoHS Directive (RoHS2).
Purpose of use
Shielding sheet for X-ray irradiation equipment (conveyors, inspection machines)
Shielding material for X-ray controlled areas
Radiation shielding material for disaster areas and work sites during reconstruction work
Shielding for radiation medical equipment
Specification
| Part Number | BD2-03-1000-02 | BD2-05-1000-02 | BD2-10-1000-02 |
|---|---|---|---|
| specific gravity | 2.16 | ||
| Thickness | 3.0mm | 5.0mm | 10.0mm |
| lead equivalent | 0.39±0.02mmPb | 0.66±0.02mmPb | 1.28±0.03mmPb |
| width | max 1m | ||
| length | max 2m | ||
| Tensile strength | 4.66MPa | ||
| Hardness | 66 Durometer A | ||
| Elongation at break* | 350% | ||
