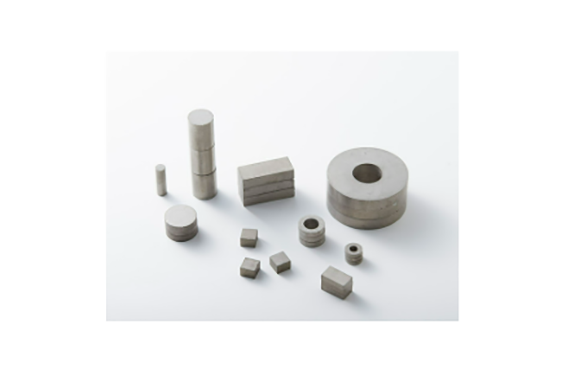

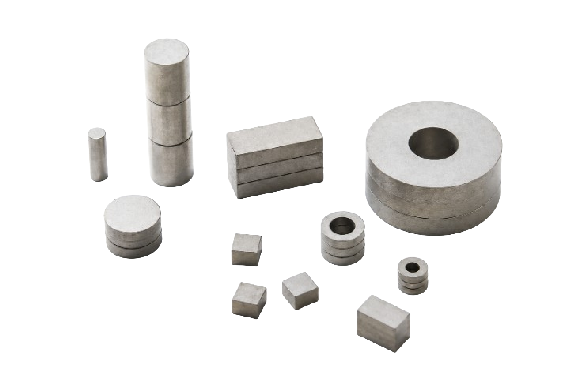

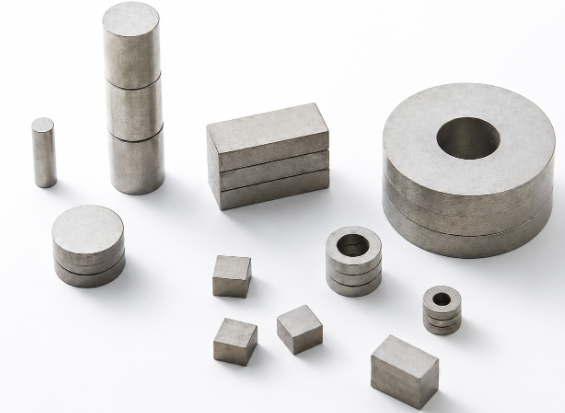

Simotec Samarium Cobalt Magnet
Product name: Samarium Cobalt Magnet
Features
- – Composed of cobalt and the rare earth element samarium
- ・Samarium-cobalt magnets have high magnetic properties second only to neodymium magnets
- ・Compared to neodymium magnets, they have the advantage of being rust-resistant and resistant to high temperatures.
- On the other hand, it is very hard and breaks easily, so it must be handled with care.
- ・Neodymium magnets are used in different applications depending on the required magnetic strength, environmental temperature, and durability depending on the application.
Purpose of use
・Sensors, medical equipment, etc.
specification
| Material Grade | Residual magnetic flux density (Br) | Coercive force (Hcb) | Coercive force (Hcj) | Maximum energy product (BH) max | Temperature coefficient (αBr) | Working Temp | Curie Temperature | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| kg | mT | kOe | kA/m | kOe | kA/m | MGOe | kJ/m3 | %/℃ | °C (H/D = 0.7) | °C | |
| 18 | 8.5-9.0 | 850-900 | 8.3-8.8 | 660-700 | ≧15 | ≧1194 | 16-18 | 127-143 | -0.05 | ≦250 | 700 |
| twenty two | 9.2-9.6 | 920-960 | 8.9-9.4 | 710-750 | ≧15 | ≧1194 | 20-22 | 160-175 | -0.05 | ≦250 | 750 |
| twenty four | 9.5-10.2 | 950-1020 | 8.7-9.4 | 700-750 | ≧18 | ≧1433 | 22-24 | 175-191 | -0.03 | ≦300 | 800 |
| 26 | 10.2-10.5 | 1020-1050 | 9.4-9.8 | 750-780 | ≧18 | ≧1433 | 24-26 | 191-207 | -0.03 | ≦300 | 800 |
| 28 | 10.3-10.8 | 1030-1080 | 9.5-10.0 | 756-796 | ≧18 | ≧1433 | 26-28 | 207-220 | -0.03 | ≦300 | 800 |
| 30 | 10.8-11.0 | 1080-1100 | 9.9-10.5 | 788-835 | ≧18 | ≧1433 | 28-30 | 220-240 | -0.03 | ≦300 | 800 |
| 26H | 10.2-10.5 | 1020-1050 | 9.4-9.8 | 750-780 | ≧25 | ≧1990 | 24-26 | 191-207 | -0.03 | ≦350 | 800 |
| 28H | 10.3-10.8 | 1030-1080 | 9.5-10.0 | 756-796 | ≧25 | ≧1990 | 26-28 | 207-220 | -0.03 | ≦350 | 800 |
| 30H | 10.8-11.0 | 1080-1100 | 9.9-10.5 | 788-835 | ≧25 | ≧1990 | 28-30 | 220-240 | -0.03 | ≦300 | 800 |
