Manufacturer: Shimonishi Giken Kogyo Co., Ltd
Product name: Thin Magnetic Catch To Prevent Slippage

Features

• By using it in combination with the anti-slip bracket
• The disadvantage of the magnet slipping and falling off has been eliminated.
• Ultra-thin, space-saving magnetic catch with a thickness of 2.2 mm
• ・Uses rare earth magnets (neodymium) and provides high adhesive power despite its thin design

Purpose of use

Measuring instruments, office equipment, furniture, home appliances, etc.
With a thickness of just over 2.2mm, it is suitable for use as an assembly part for lightweight panels and partitions
For connecting, stacking, positioning, and preventing misalignment.

Specification

RoHS compliant

Part Number

CA0264-A01

The following two-item set

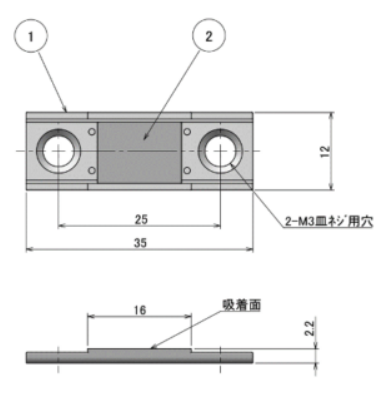

Part Number	CA0263-A01
Product name	[Thin magnetic catch parts]
size	12.0 mm length x 35 mm width x 2.2 mm height
yoke	SPCC (① on the right)
magnet	Neodymium magnet (② in the right image)
Finishing	Nickel plating
Part mass	4 g
Recommended mounting screws	Countersunk wood screw nominal size 3, or countersunk machine screw M3
Adsorption power	3.0 kgf

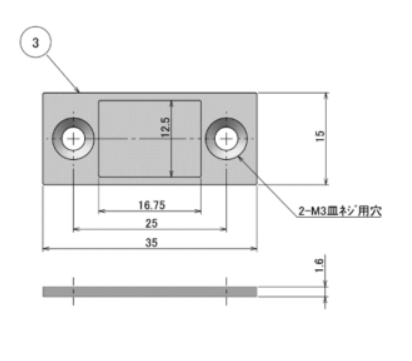

Part Number	CA0264-C01
Product name	[Slip prevention bracket (receiving bracket)]
size	15.0 mm length x 35 mm width x 1.6 mm height
yoke	SPCC (③ on the right)
Finishing	Nickel plating
Part mass	6 g
Recommended mounting screws	Countersunk wood screw nominal size 3, or countersunk machine screw M3
