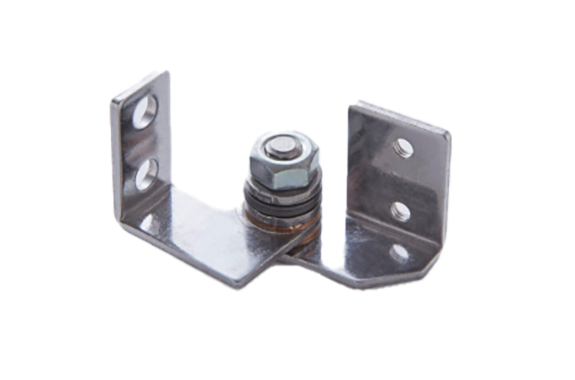

Simotec Tilt Hinge (Disc Type A)
Manufacturer: Shimonishi Giken Kogyo Co., Ltd
Product name: Tilt Hinge
Features
- Free stop (stop at any angle) is possible over the entire range by balancing with the lid moment.
- Smooth operation thanks to balanced center of gravity of opening and closing objects
- ・Smooth rotation with constant torque throughout the operating range
- ・Compact design with a maximum rotating shaft diameter of φ10
Purpose of use
Laptops with 10-12 inch LCD screens
Opening and closing parts of small and lightweight devices
Specification
| Specification | Details |
|---|---|
| Part Number | TH0021/TH0022 |

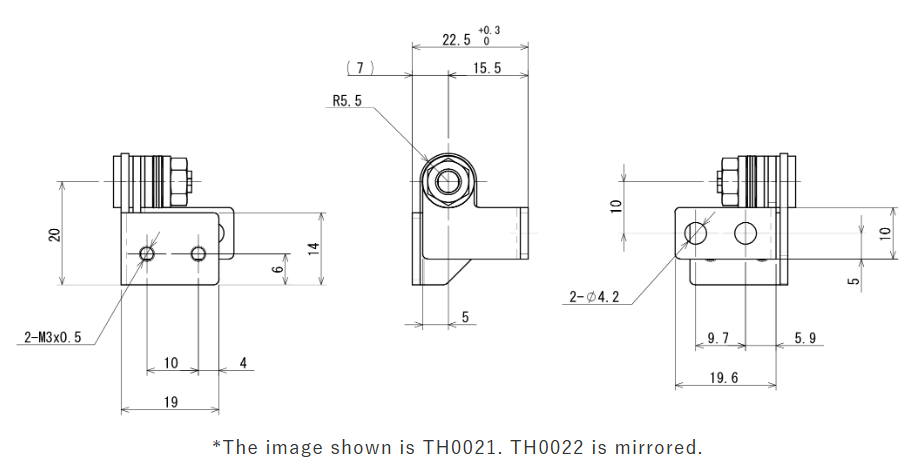

| Size |  |
| Rotating Shaft Diameter | φ10 |
| Hinge Torque | 20 to 120 N·cm ±20% |
| Durability | 5,000 times (Initial value ±20%) |
| Operating Angle | 0 to 230 degrees |
| Free Stop Range | All areas |
