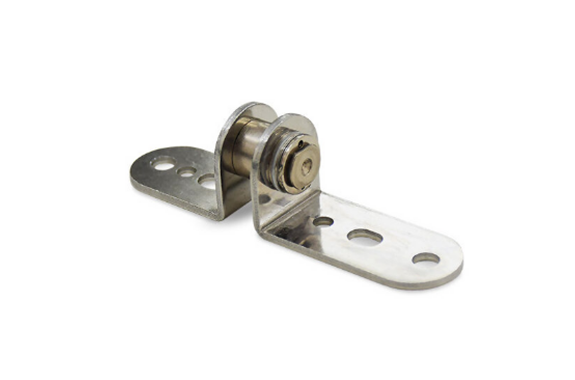

Simotec Tilt Hinge (Disc Type C)
Manufacturer: Shimonishi Giken Kogyo Co., Ltd
Product name: Tilt Hinge (Disc Type C)
Features
- Free stop (stop at any angle) is possible over the entire range by balancing with the lid moment.
- Smooth operation thanks to balanced center of gravity of opening and closing objects
- Smooth rotation with constant torque throughout the operating range
Purpose of use
Equipment that requires smooth opening and closing of attached parts
Medical equipment arms
Factory automation equipment
TV stands (tilt and swivel mechanism)

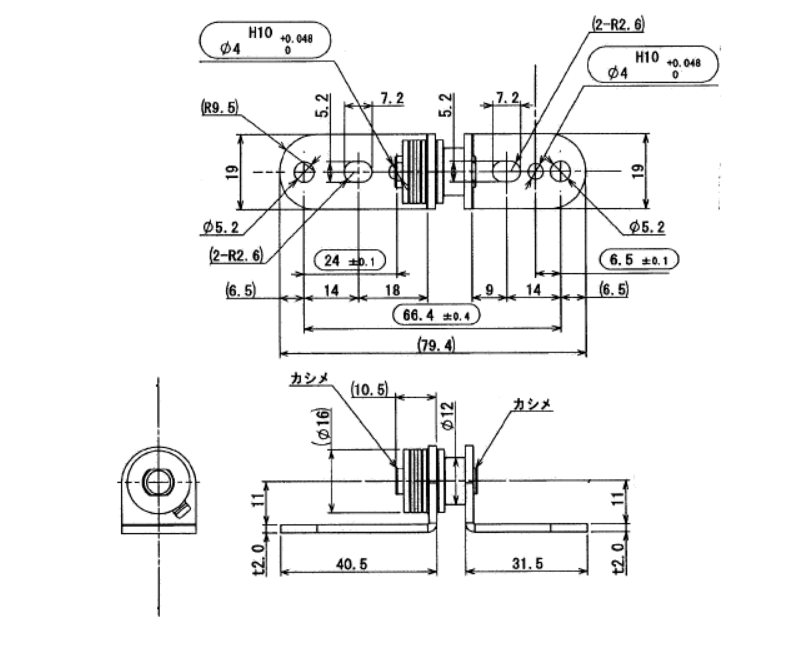

Specification
| Item | Specification |
|---|---|
| Part Number | SS0042-A99 |
| Size |  |
| Shaft Outer Diameter | Ø16 |
| Initial Torque | 100 to 400 N·cm ±20% |
| Durability | 5,000 cycles, Initial value ±20% |
| Usage Environment / Storage Environment | 5 to 35°C, 10%–90% RH Low temperature: –20°C High temperature and high humidity: 60°C, 90% RH or less |
