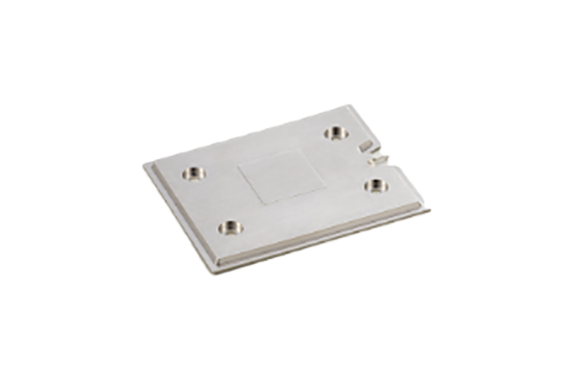

Simotec Vapor Chamber
Manufacturer: Shimonishi Giken Kogyo Co., Ltd
Product name: Vapor Chamber
Overview
Vapor chambers are air-cooling components developed to meet the needs for cooling in smaller spaces than conventional heat sinks. They
rapidly move and diffuse heat in thickness and plane directions in response to localized heat input.
They are primarily used in high-spec environments that require both space-saving and high performance.
Features
- Uniform temperature distribution within the surface
- Thinner and larger sizes possible
- By sandwiching the vapor chamber between heat-generating components, heat can be dissipated even in small spaces.
Purpose of use
・Cooling and heat distribution for small precision equipment such as notebook computers, smartphones, and PC CPUs
Specification
Standard Specifications
| Thin type | Standard type | |
|---|---|---|
| Size (mm) *The range of sizes that can be manufactured is a guideline. | Length and width: 50 to 100 Thickness: 0.4 to 4 | Length and width: 50 to 370 Thickness: 4-15 |
| Material | C1020 | |
| hydraulic fluid | pure water | |
