SINFONIA TECHNOLOGY CO., LTD.

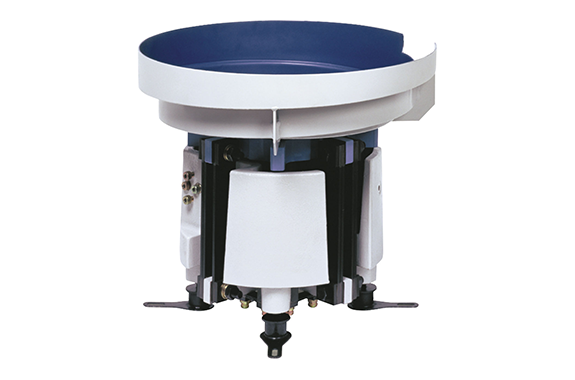

Sinfonia DM Series Parts Feeders
Manufacturer: Sinfonia Technology co., LTD, Ltd.
Model: Ground Power Unit
Features
Minimal vertical vibration reduces workpiece bouncing, ensuring smooth, separate conveyance of thin, flat components. Gentle, gliding movement minimizes impact and operating noise.
Drive Unit Specifications
| Model | DM-30D | DM-38D | DM-45D | DM-65C | |
|---|---|---|---|---|---|
| Drive unit outer diameter (mm) | φ310 | φ390 | φ460 | φ670 | |
| Drive unit height (mm) | 290 | 295 | 365 | 572.5 | |
| Drive unit weight (kg) | 53 | 81 | 140 | 312 | |
| Rated voltage (V) | 200 | ||||
| Rated current (A) | Horizontal | 2.0 | 2.0 | 4.0 | 4.0 |
| Vertical | 0.8 | 0.8 | 2.0 | 2.0 | |
| Vibration frequency (Hz) | 70~110 | 30~40 | |||
| Unprocessed bowl diameter (mm) (cylindrical) | φ300 | φ375 | φ450 | φ650 | |
| Max. bowl diameter (mm) (cylindrical) | φ500 | φ600 | φ700 | φ1000 | |
| Max. loaded weight (kg) | 9.2 | 17.0 | 27.5 | 70.0 | |
| Max. amplitude (mm) （Unprocessed cylindrical bowl periphery） | Horizontal | 1.8 | 2.0 | 4.0 | |
| Vertical | 0.3 | 1.0 | |||
| Cross section area of power cable (mm2) | 0.75×5cores | ||||
| Applicable controller | C10-4DM | ||||
DM30D~45D
Dimensions
Unit: mm
Dimensions Chart
| Model | H | φA | B | M | φD | φd | t | φF |
|---|---|---|---|---|---|---|---|---|
| DM-30D | 285~290~295 | 310 | 290 | M12 | 270 | 10 | 8 | 252 |
| DM-38D | 290~295~300 | 390 | 370 | M16 | 320 | 10 | 8 | 324 |
| DM-45D | 360~365~370 | 460 | 440 | M16 | 365 | 12 | 10 | 390 |
DM65C
Dimensions
Unit: mm
