SINFONIA TECHNOLOGY CO., LTD.

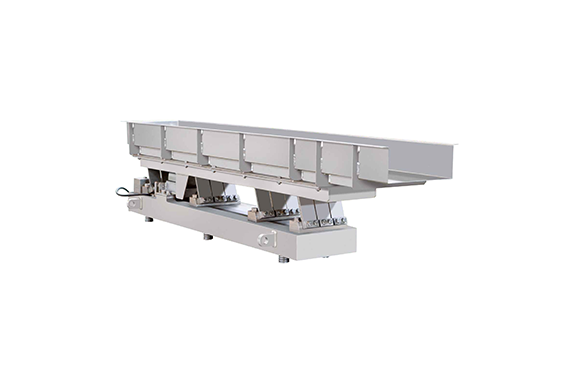

Sinfonia WF Series Water-Resistant Electromagnetic Feeder Vibrating Equipment
Manufacturer: Sinfonia Technology co., LTD, Ltd.
Model: WF Series
Structural diagram
Specifications
| Model | WF-221 |
|---|---|
| Stroke (mm) | 1.5 |
| Vibration frequency (Hz) | 50~70 |
| Voltage (V) | 200/220 |
| Applicable controller | C10-5VFEF |
| Weight (kg) | Approx. 250 (In case of Trough W300×L2000mm) |
| Current (A) | 4.5 |
| Main material | SUS (Armature is Carbon steel plating) |
| Trough weight | Max.36kg |
| Max. trough length (mm) | 2000 |
| Auxiliary cable | Cab tire cable 2PNCT 1500mm (1.25mm2×3core) |
Dimensions
Trough length 2000mm*
Groove Length
Trough length 1000mm
Dimensions above are for reference. Actual trough dimension is designed according to customer’s requirement.
