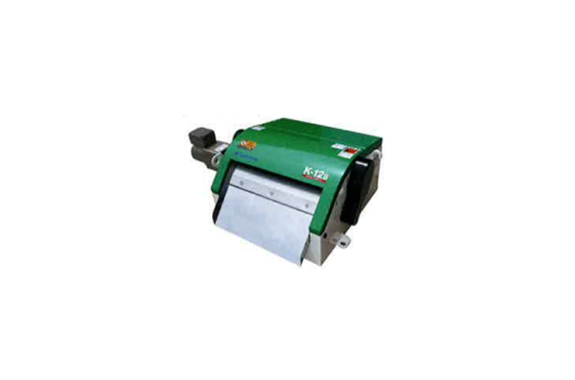

Manufacturer: Sumitomo Heavy Industries Finetech,Ltd
Model: KS/FS
Size 4 – 36 (Model K / F / KS / FS)
| Size | Flow Volume (L/min) | Motor | Dimensions (mm) | Pipe Dia. | Weight |
|---|
| Water Soluble | W | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T | U | V | W | X | Y | Z | Inlet a | Outlet b | (kg) |
|---|
| 4 | 40 | 25 | 233 | 348 | 169 | 138 | 209 | 433 | 269 | 227 | 157 | 513 | 441 | 293 | 77 | 100 | 50 | 30 | 78 | 20 | 143 | 166 | 124 | 118 | 80 | 48 | 13 | 23.5 | 1 1/2 | 2 | 25 |
| 6 | 60 | 25 | 289 | 348 | 225 | 194 | 265 | 433 | 325 | 227 | 157 | 513 | 497 | 321 | 77 | 100 | 50 | 30 | 78 | 20 | 143 | 222 | 124 | 118 | 80 | 48 | 13 | 30 | 2 | 2 | 29 |
| 8 | 80 | 25 | 345 | 348 | 281 | 248 | 319 | 437 | 379 | 260 | 191 | 517 | 551 | 348 | 88 | 104 | 50 | 30 | 110 | 20 | 138 | 276 | 124 | 151 | 80 | 57 | 30 | 30 | 2 | 2 1/2 | 35 |
| 12 | 120 | 25 | 457 | 348 | 393 | 361 | 432 | 449 | 492 | 270 | 201 | 529 | 664 | 404 | 95 | 116 | 50 | 30 | 110 | 20 | 138 | 389 | 124 | 161 | 80 | 69 | 26 | 30 | 2 1/2 | 3 | 47 |
| 18 | 180 | 25 | 625 | 348 | 561 | 526 | 600 | 449 | 660 | 270 | 201 | 529 | 832 | 498 | 95 | 116 | 50 | 30 | 110 | 20 | 138 | 555 | 124 | 161 | 80 | 69 | 26 | 30 | 3 | 3 | 68 |
| 24 | 240 | 25 | 620 | 460 | 492 | 478 | 586 | 580 | 666 | 353 | 268 | 685 | 736 | 391 | 110 | 144 | 65 | 40 | 120 | 20 | 141 | 526 | 124 | 183 | 201 | 26 | 29 | 30 | 3 | 4 | 88 |
| 36 | 360 | 25 | 844 | 460 | 716 | 692 | 800 | 580 | 880 | 368 | 283 | 685 | 950 | 498 | 110 | 144 | 65 | 40 | 139 | 20 | 140 | 739 | 124 | 198 | 201 | 26 | 44 | 30 | 4 | 4 | 117 |
Sludge Box Dimensions (mm)
| Model | Width | Depth | Height | Weight |
|---|
| 4-6 | 326 | 204 | 162 | 0.5kg |
| 8 | 384 | 220 | 238 | 0.9kg |
| 12 | 508 | 266 | 225 | 1.3kg |
| 18 | 704 | 290 | 173 | 1.6kg |
| 24 | 600 | 200 | 200 | 5.5kg |
| 36 | 900 | 250 | 250 | 14.5kg |
