Sunny Giken CAN FD Evaluation Board S810-TPF-FD121
Manufacturer: Sunny Giken Inc.
Model : S810-TPF-FD121
Features
- This evaluation board is optimized for evaluating CAN FD communication, the next-generation in-vehicle LAN communication standard.
- The microcontroller section and CAN FD transceiver section are allowing configured as replaceable boards daughter, for flexible testing of various devices.
- Equipped with an interface that allows evaluation of CAN FD, CAN, and LIN communication for in-vehicle ECUs and industrial use.
- Supports Renesas Electronics RH850/F1K (176Pin) microcontrollers.

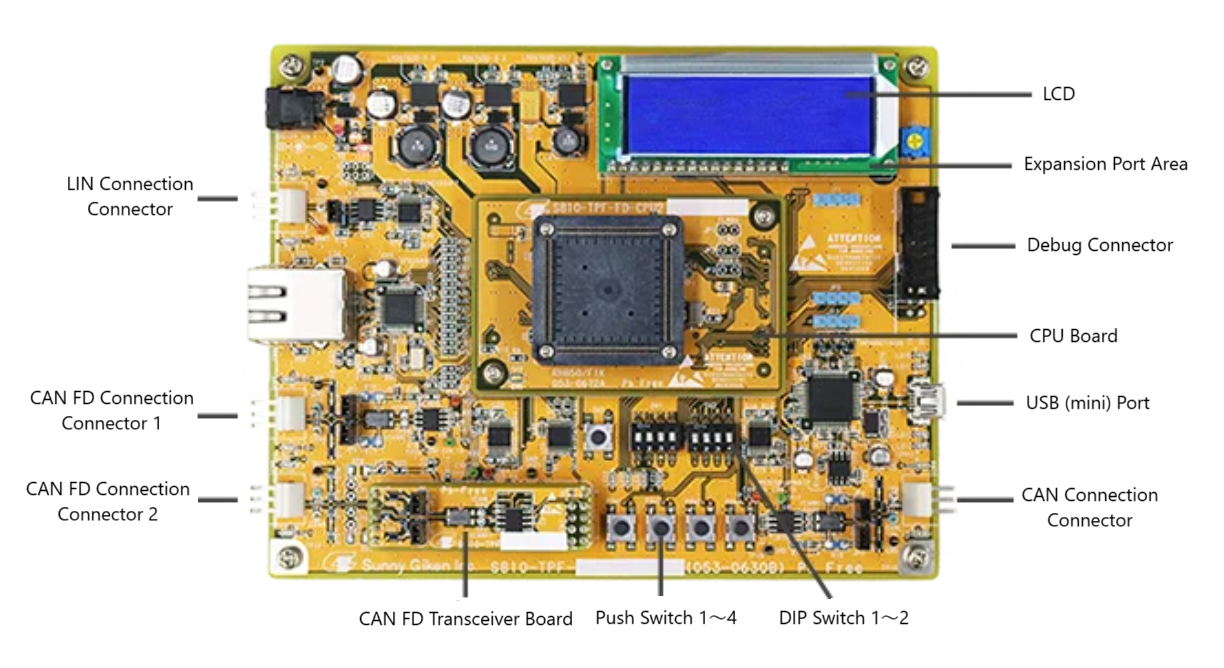

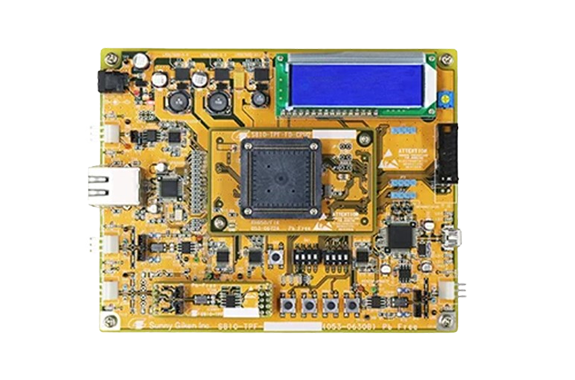

CAN FD evaluation board (S810-TPF-FD121)
Specification
| Product Model | S810-TPF-FD121 | |
|---|---|---|
| Compatible microcomputers | Renesas Electronics RH850/F1K(176Pin) [*1] | |
| CAN FD Transceiver | MICROCHIP MCP2561FD (Daughter Board) | |
| NXP Semiconductors TJA1044GT | ||
| Crystal Oscillator | 20MHz | |
| CAN FD interface | 2ch | |
| CAN interface | 1ch | |
| LIN Interface | 1ch | |
| I/O Interface | input | Push switch x 1 (reset) |
| Push switch x 4 (external interrupt or general-purpose I/O) | ||
| DIP switch (4ch) x 2 | ||
| display | LCD (16 characters x 2 lines) | |
| 4 x LEDs | ||
| USB Interface | UART × 2ch (USB Access 1Port) | |
| Debug Connector | 1ch | |
| Power consumption | 12V max 250mA | |
| External dimensions | (W)150 × (H)120 × (D)36 (mm) | |
| Accessories | AC adapter (DC12V, max. 1A), instruction manual, etc. | |
[*1] This product is provided as a socket type.
