SUNNY GIKEN
Sunny Giken CXPI Evaluation Board S810-CXG4
Manufacturer: Sunny Giken Inc.
Model : S810-CXG4
Features
- This is an evaluation board that supports the next-generation in-vehicle LAN standard CXPI.
- In addition to evaluating in-vehicle CXPI communications, it also has CAN, so it can also evaluate CAN/CXPI gateways.
- The microcontroller is the Renesas Electronics RL78/F14.

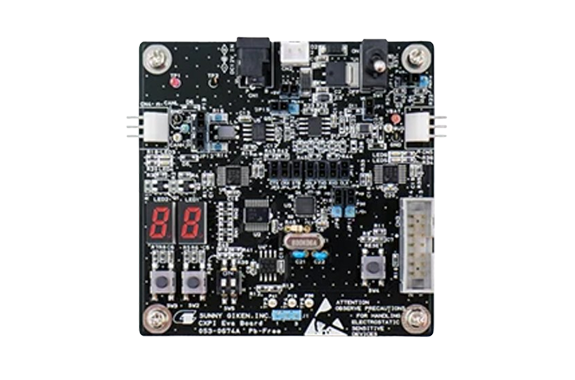

CXPI evaluation board (S810-CXG4)
Specification
| Product Model | S810-CXG4 | |
|---|---|---|
| Microcontroller | CPU | Renesas Electronics RL78/F14 (16bit) |
| clock | up to 32MHz | |
| Built-in memory | ROM 48KB, RAM 4KB, Data Flash 4KB | |
| CXPI Transceiver | ROHM BD41000AFJ-C | |
| Crystal Oscillator | 8MHz | |
| CXPI interface | 1ch | |
| CAN interface | 1ch | |

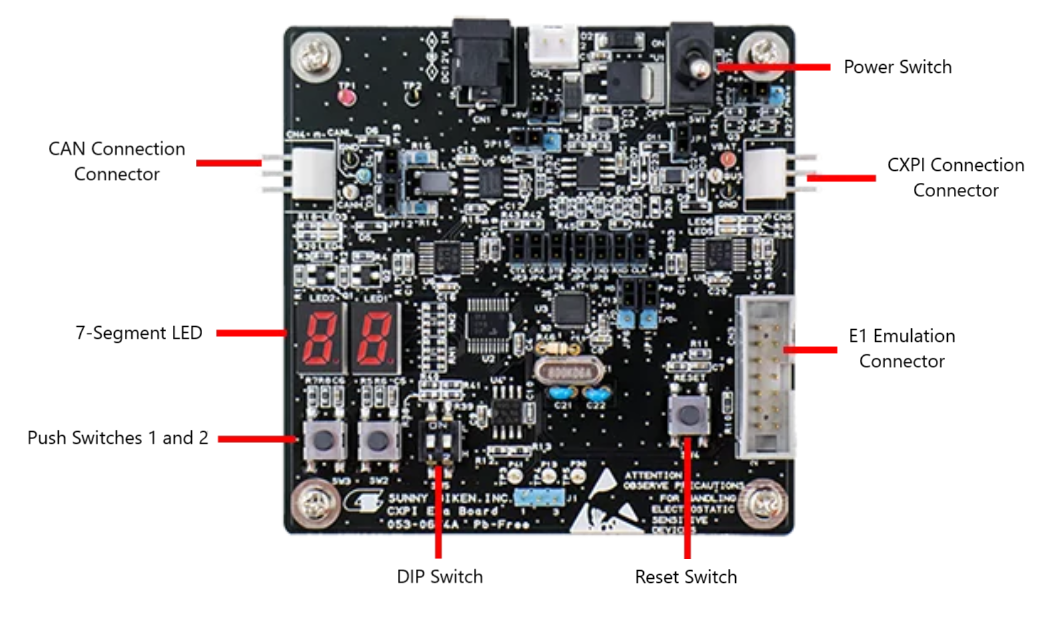

| I/O Interface | input | Push switch x 1 (reset) |
| Push switch x 2 (external interrupt or general-purpose I/O) | ||
| DIP switch (2ch) x 1 | ||
| display | 7-segment LED × 2 | |
| Debug Interface | E1 Emulation Connector | |
| Power consumption | 12V max 210mA | |
| External dimensions | (W)80 x (D)80(mm) | |
| weight | 45g | |
