SUNNY GIKEN
Sunny Giken CXPI Starter Kit
Manufacturer: Sunny Giken Inc.
Model : CXPI Starter Kit
Features
- The CXPI starter kit includes a microcomputer board (S810-CXG5) optimized for CXPI communication, and demo programs for the CXPI communication master node and slave node.
- The CXPI communication demo software is provided as a binary file.
- It is an evaluation board kit that allows to experience CXPI communication immediately.

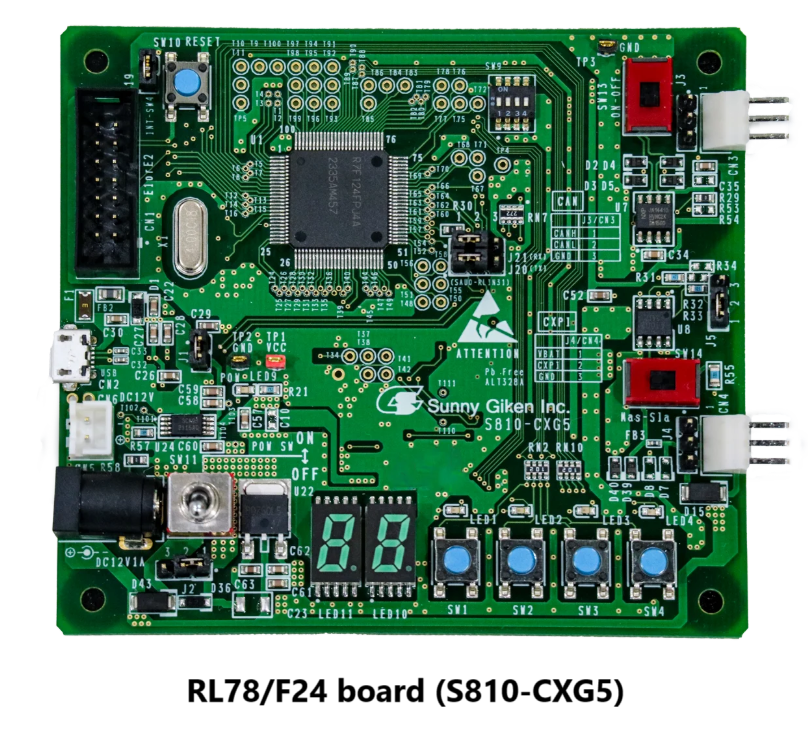

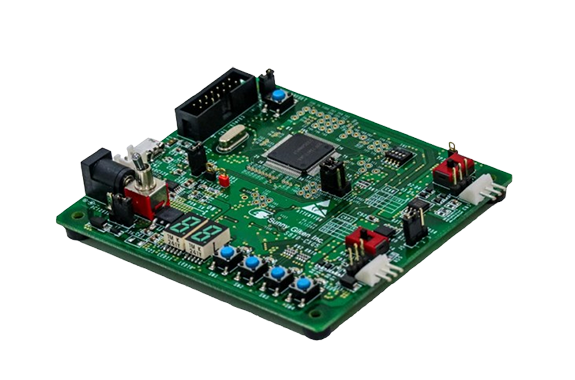

RL78/F24 microcontroller board optimized for CXPI communication
| Product Model | S810-CXG5 |
On-board microcomputer | Renesas Electronics RL78/F24 (R7F124FPJ3AFB-C) 100pin |
CAN/CAN FD transceivers | NXP TJA1441DT/0Z |
CXPI Transceiver | ROHM BD41003FJ-C |
EEPROM | Macronix MX25V8035FM1I (Memory size: 8Mbit) |
CAN/CAN FD interfaces | 1ch |
CXPI interface | 1ch |
UART Interface | 1ch (USB micro-B) |
I/O Interface | DIP switch (4bit) x 1 Push switch x 4 Reset switch x 1 7-segment LED x 2 LED x 5 (red x 1, green x 4) |
Debug Interface | E2 emulator connector × 1ch |
Power Input | DC12V±0.6V |
External dimensions | 95(W)x85(D)mm *excluding protruding parts |
Specification
| Product name | Product Model | Accessories | Downloadable Content |
|---|---|---|---|
RL78/F24 board | S810-CXG5 | ・board | ・Hardware manual |
