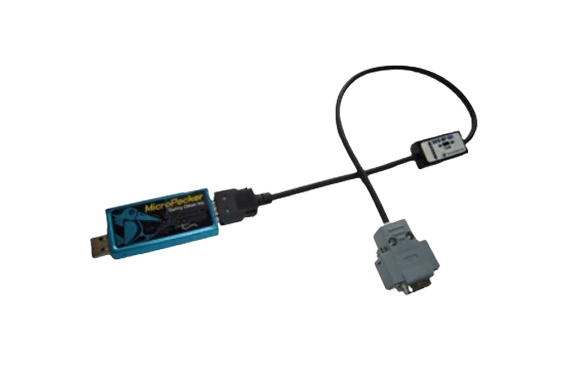

Sunny Giken MicroPecker CAN Analyzer S810-MP-A1

Manufacturer: Sunny Giken Inc.
Model: S810-MP-R3

Features

Monitors CAN communication data and supports the transmission and reception of CAN frame data.
Equipped with a node simulation function for advanced testing and analysis.
Supports signal settings and enables monitoring using physical values.
Offers graph display functionality for visual representation of data.

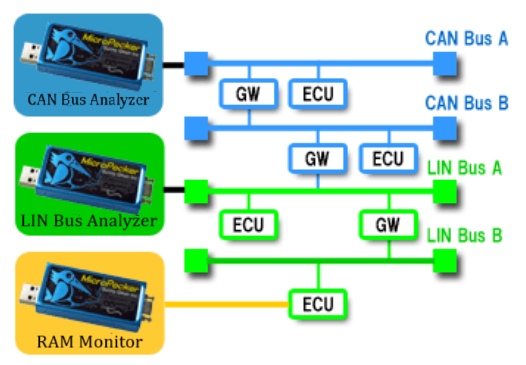

Multi-channel capability allows simultaneous monitoring of up to 6 CAN communication channels.

Multi-channel CAN bus analyzer

	Compatible with USB2.0 (High Speed), one MicroPecker unit is required for each connected MicroPecker unit [*4]
Host Interface		USB 2.0 High Speed (480Mbps)
Host operating environment	PC[*1]	IBM PC/AT compatible machine
	OS[*2]	Windows 11(64bit), 10(64bit), 8.1(64bit)
	CPU	Celeron 1.6GHz or higher recommended
	hard disk	50MB or more of free space [*3]
	Memory	1Gbyte or more is recommended
	display	Resolution: 1024 x 768 or higher recommended
	others	Monitor, keyboard, and mouse
power supply		USB Bus Power (5V, 400mA)
Dimensions[*5]		62(W)×30(D)×12(H)mm
weight		35g

[*1]: If your PC has a power saving function, set it so that the PC does not go into sleep mode, the HDD does not stop, and the CPU clock does not slow down while using this product.
[*2]: Operation in a virtual environment is not supported.
[*3]: If you want to save the logging file to a local hard disk, make sure you have enough free hard disk space.
[*4]: If you are connecting using an external USB hub, be sure to select a self-powered device and connect it after supplying power from an external source. If you connect a USB hub that is bus-powered, it may not work or may become unstable.
[*5]: The dimensions do not include the protrusions on the connection terminals.

signal	CAN-Hi, CAN-Lo, GND *Uses Dsub9Pin connector
Cable length	MicroPecker – Driver unit: 150mm Driver unit – Dsub connector: 350mm Total length: 500mm
shield	can be
