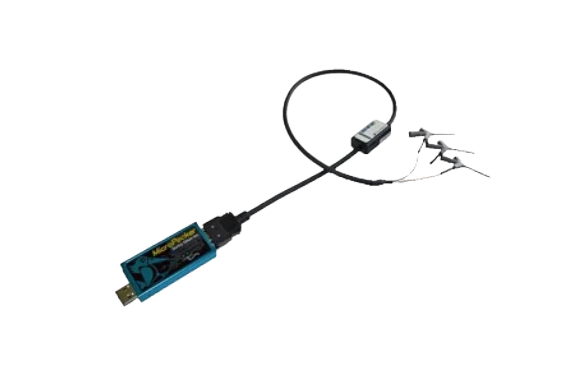

Sunny Giken MicroPecker LIN bus analyzer S810-MP-A2

Manufacturer: Sunny Giken Inc.
Model: S810-MP-A2

Features

The MicroPecker LIN Bus Analyzer not only monitors LIN communications but also includes a powerful node simulation function that enhances its overall capabilities.
The node simulation feature allows simulation of both master and slave nodes within a LIN communication network.
It supports essential evaluation functions, such as the ability to simulate various types of LIN communication errors.
The analyzer includes a LIN frame transmission function that operates under finely configurable conditions for detailed testing scenarios.
The master node simulation feature enables the device to emulate the behavior of a LIN network’s master node for comprehensive testing.

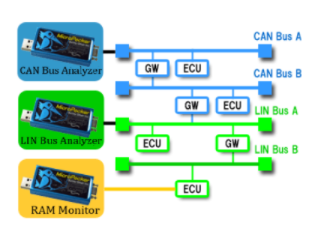

Multi-channel synchronous monitoring function

	50MB or more of free space [*3]
Host Interface		USB 2.0 High Speed (480Mbps)
Host operating environment	PC[*1]	IBM PC/AT compatible machine
	OS [*2]	Windows 11(64bit), 10(64bit), 8.1(64bit)
	CPU	Celeron 1.6GHz or higher recommended
	Memory	1Gbyte or more is recommended
	USB port	Compatible with USB2.0 (High Speed), one MicroPecker unit is required for each connected MicroPecker unit [*4]
	display	Resolution: 1024 x 768 or higher recommended
	others	Monitor, keyboard, and mouse
power supply		USB Bus Power (5V, 400mA)
Dimensions[*5]		62(W)×30(D)×12(H)mm
weight		35g

[*1]: If your PC has a power saving function, set it so that the PC does not go into sleep mode, the HDD does not stop, and the CPU clock does not slow down while using this product.
[*2]: Operation in a virtual environment is not supported.
[*3]: If you want to save the logging file to a local hard disk, make sure you have enough free hard disk space.
[*4]: If you are connecting using an external USB hub, be sure to select a self-powered device and connect it after supplying power from an external source. If you connect a USB hub that is bus-powered, it may not work or may become unstable.
[*5]: The dimensions do not include the protrusions on the connection terminals.

signal	VBAT, GND, LIN *Use IC clip (gray)
Cable length	MicroPecker – Driver unit: 150mm Driver unit – IC clip: 450mm Total length: 638mm
shield	can be
