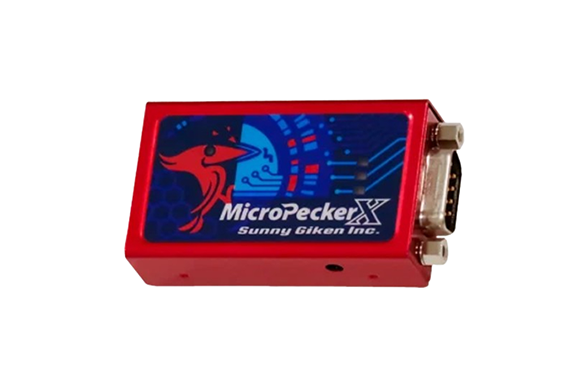

Sunny Giken MicroPeckerX CAN FD Analyzer S810-MX-FD2
Manufacturer: Sunny Giken Inc.
Model : S810-MX-FD2
Features
- The MicroPeckerX CAN FD Analyzer is a communication analyzer tool that supports CAN communication / CAN FD communication.
- It is equipped with a 2ch interface in a compact body, and comes with a GUI application with communication monitor and node simulation functions.
- It can be used immediately without complicated settings.
CAN analyzer comparison
- This is a comparison table between the MicroPecker CAN Analyzer and the MicroPeckerX CAN FD Analyzer.
- The MicroPeckerX CAN FD Analyzer is the successor to the MicroPecker CAN Analyzer.
| Feature Comparison | MicroPecker CAN Analyzer 《S810-MP-A1》 | MicroPeckerX CAN FD Analyzer 《S810-MX-FD2》 |
|---|---|---|
Supported protocols | CAN communication | CAN communication / CAN FD communication |
Number of channels supported (one unit) | 1ch (Max. 6ch, 6 units) | 2ch (Maximum 8ch, 4 units) |
Product included items (※1) | MicroPecker main unit, dedicated CAN cable, synchronization cable, USB extension cable | MicroPeckerX main unit, sync cable, USB (microB) cable (CAN cable sold separately) |
Expansion options | RAM monitor and LIN analyzer switchable (separate license required) | Added communication security (message authentication plug-in) function and InstaGW (CAN-CAN FD protocol conversion tool) switchable (separate license required) |
Application development library (※2) | Windows 64bit version | Windows 64bit version, Linux version, SocketCAN driver for Linux |
Hardware Specifications
| Item | Content | |
|---|---|---|
Host Interface | USB 2.0 High Speed (480Mbps) | |
Host operating environment | PC | IBM PC/AT compatible machine |
OS | Windows 11(64bit), 10(64bit), 8.1(64bit) | |
CPU | Intel or AMD x86 processor (Core i5/Ryzen5 or higher recommended) | |
hard disk | 10GB or more of free space | |
Memory | 8GB or more is recommended | |
USB port | Compatible with USB2.0 (High Speed), required for each MicroPeckerX unit to be connected | |
Screen resolution | 1920 x 1080 or higher recommended | |
others | Monitor, keyboard, and mouse | |
Power supply | USB Bus Power (5V, 300mA) | |
Dimensions | 65(W)×35(D)×16(H)mm | |
weight | 45g | |
Dsub terminal specifications
■ MicroPeckerX main unit and Dsub connector
| Pin | Function |
|---|---|
| 1 | CAN Lo(CH1) |
| 2 | CAN Lo(CH0) |
| 3 | GND |
| 4 | Not Connected. |
| 5 | Not Connected. |
| 6 | GND |
| 7 | CAN Hi(CH0) |
| 8 | CAN Hi(CH1) |
| 9 | Not Connected. |

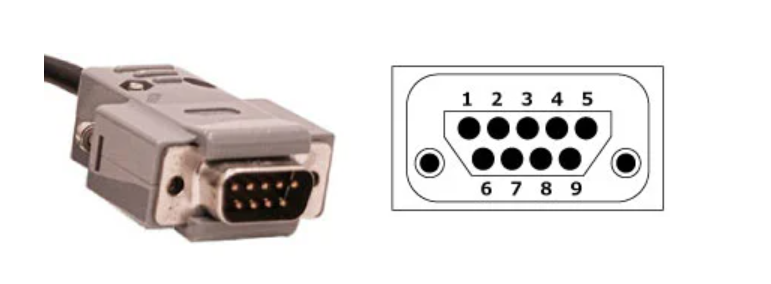

MicroPeckerX D-sub Connector Details
■ CAN 1ch clip cable terminal
| Pin | Function |
|---|---|
| 1 | Not Connected. |
| 2 | CAN Lo |
| 3 | GND |
| 4 | Not Connected. |
| 5 | Not Connected. |
| 6 | Not Connected. |
| 7 | CAN Hi |
| 8 | Not Connected. |
| 9 | Not Connected. |
MicroPecker CAN Cable D-sub Connector Details
■ CAN 2ch Dsub cable terminal
| Pin | Function |
|---|---|
| 1 | Not Connected. |
| 2 | CAN Lo |
| 3 | GND |
| 4 | Not Connected. |
| 5 | Not Connected. |
| 6 | Not Connected. |
| 7 | CAN Hi |
| 8 | Not Connected. |
| 9 | Not Connected. |
CAN 2ch D-sub Cable D-sub Connector Details
