SUNNY GIKEN

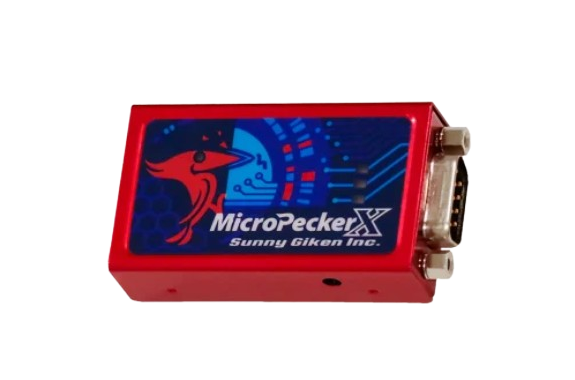

Sunny Giken MicroPeckerX CAN FD Interface Model S810-MX-HW2
Manufacturer: Sunny Giken Inc.
Model : S810-MX-HW2
Features
- The MicroPeckerX CAN FD interface model is a product that includes only the MicroPeckerX itself, and is intended for use with MicroPeckerX in user-created applications using the MicroPeckerX application development library, etc.
- This product is ideal for that do not need the standard MicroPeckerX CAN FD Analyzer software.
- Instead, it is meant to be used together with a custom-developed application.
Hardware Specifications
| Item | Content | |
|---|---|---|
Host Interface | USB 2.0 High Speed (480Mbps) | |
Host operating environment [*1] | PC | IBM PC/AT compatible machine |
OS [*2] | Windows 11(64bit), 10(64bit), 8.1(64bit) | |
CPU | Intel or AMD x86 processor (Core i5/Ryzen5 or higher recommended) | |
hard disk | 10GB or more of free space[*3] | |
Memory | 8GB or more is recommended | |
USB port | Compatible with USB2.0 (High Speed), required for each MicroPeckerX unit to be connected [*4] | |
Screen resolution | 1920 x 1080 or higher recommended | |
others | Monitor, keyboard, and mouse | |
Power supply | USB Bus Power (5V, 300mA) | |
Dimensions[*5] | 65(W)×35(D)×16(H)mm | |
weight | 45g | |
Dsub terminal specifications

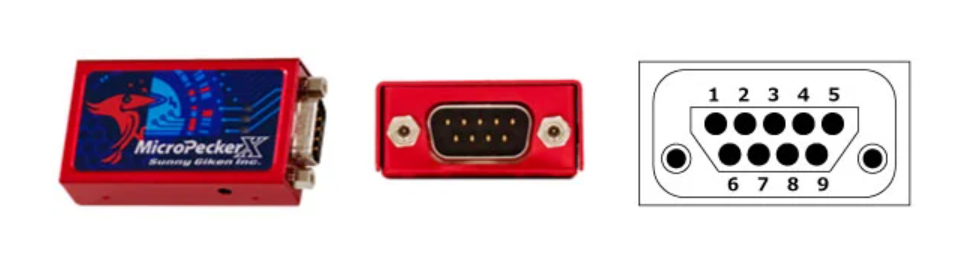

■ MicroPeckerX main unit and Dsub connector
| Pin | Function |
|---|---|
| 1 | CAN Lo(CH1) |
| 2 | CAN Lo(CH0) |
| 3 | GND |
| 4 | Not Connected. |
| 5 | Not Connected. |
| 6 | GND |
| 7 | CAN Hi(CH0) |
| 8 | CAN Hi(CH1) |
| 9 | Not Connected. |

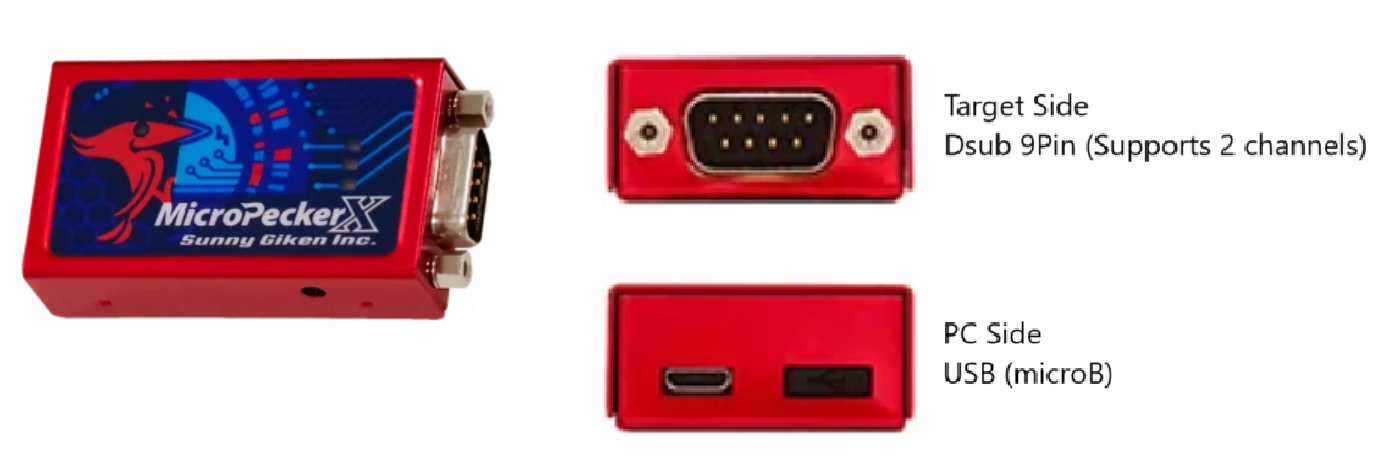

MicroPeckerX D-sub Connector Details
