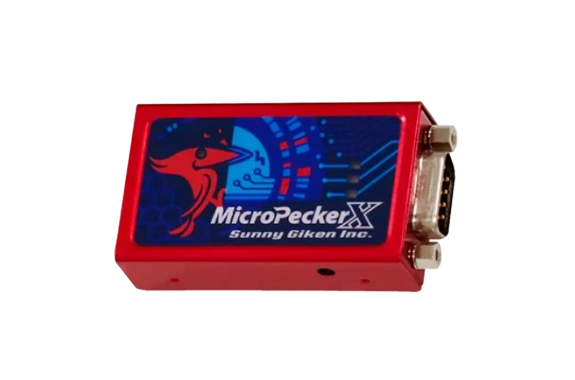

Sunny Giken MicroPeckerX InstaGW S810-MX-GW2
Manufacturer: Sunny Giken Inc.
Model : S810-MX-GW2
Features
- MicroPeckerX InstaGW is a CAN-CAN FD protocol conversion gateway tool.
- By connecting it between a CAN communication bus and a CAN FD communication bus, it bridges CAN communication and CAN FD communication.
- The gateway frame can be easily set up using Excel. Any frame can be sent or received via protocol conversion via MicroPeckerX InstaGW.
Hardware Specifications
| Item | Content | |
|---|---|---|
Host Interface | USB 2.0 High Speed (480Mbps) | |
Host operating environment | PC | IBM PC/AT compatible machine |
OS | Windows 11(64bit), 10(64bit), 8.1(64bit) | |
CPU | Intel or AMD x86 processor (Core i5/Ryzen5 or higher recommended) | |
hard disk | 10GB or more of free space | |
Memory | 8GB or more is recommended | |
USB port | Compatible with USB2.0 (High Speed), required for each MicroPeckerX unit to be connected | |
Screen resolution | 1920 x 1080 or higher recommended | |
others | Monitor, keyboard, and mouse | |
Power supply | USB Bus Power (5V, 300mA) | |
Dimensions | 65(W)×35(D)×16(H)mm | |
weight | 45g | |
Dsub terminal specifications
■ MicroPeckerX main unit and Dsub connector
| Pin | Function |
|---|---|
| 1 | CAN Lo(CH1) |
| 2 | CAN Lo(CH0) |
| 3 | GND |
| 4 | Not Connected. |
| 5 | Not Connected. |
| 6 | GND |
| 7 | CAN Hi(CH0) |
| 8 | CAN Hi(CH1) |
| 9 | Not Connected. |
MicroPeckerX D-sub Connector Details
■ CAN 2ch Dsub cable terminal
| Pin | Function |
|---|---|
| 1 | Not Connected. |
| 2 | CAN Lo |
| 3 | GND |
| 4 | Not Connected. |
| 5 | Not Connected. |
| 6 | Not Connected. |
| 7 | CAN Hi |
| 8 | Not Connected. |
| 9 | Not Connected. |

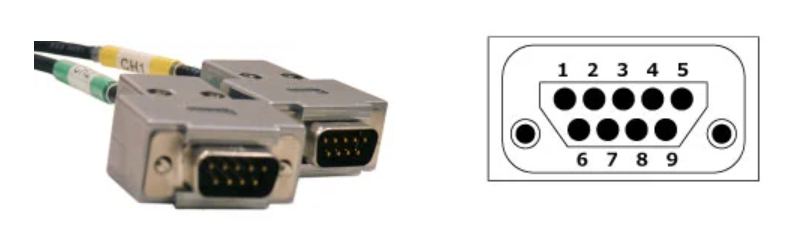

CAN 2ch D-sub Cable D-sub Connector Details
