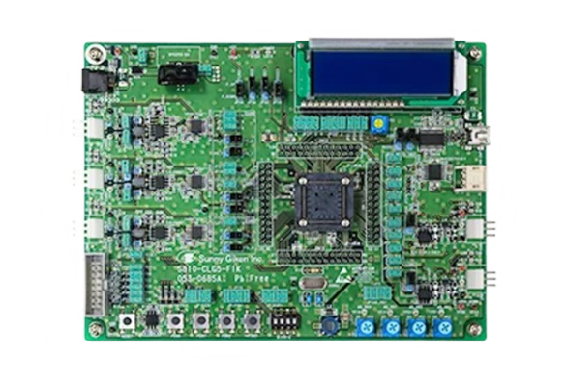

Sunny Giken RH850 / F1K Evaluation Board S810-CLG5-F1K
Manufacturer: Sunny Giken Inc.
Model : S810-CLG5-F1K
Features
- This evaluation board is optimized for testing Renesas RH850/F1K and RH850/F1KM-S1 microcontrollers, both in 100-pin packages.
- In addition to jumper-selectable microcontroller channel assignment for CAN FD (CAN) and LIN interfaces, all microcontroller pins are exposed via through-holes, allowing for highly flexible board configurations.
- This evaluation board enables waveform observation and microcontroller testing in a setup that closely resembles the customer’s environment.

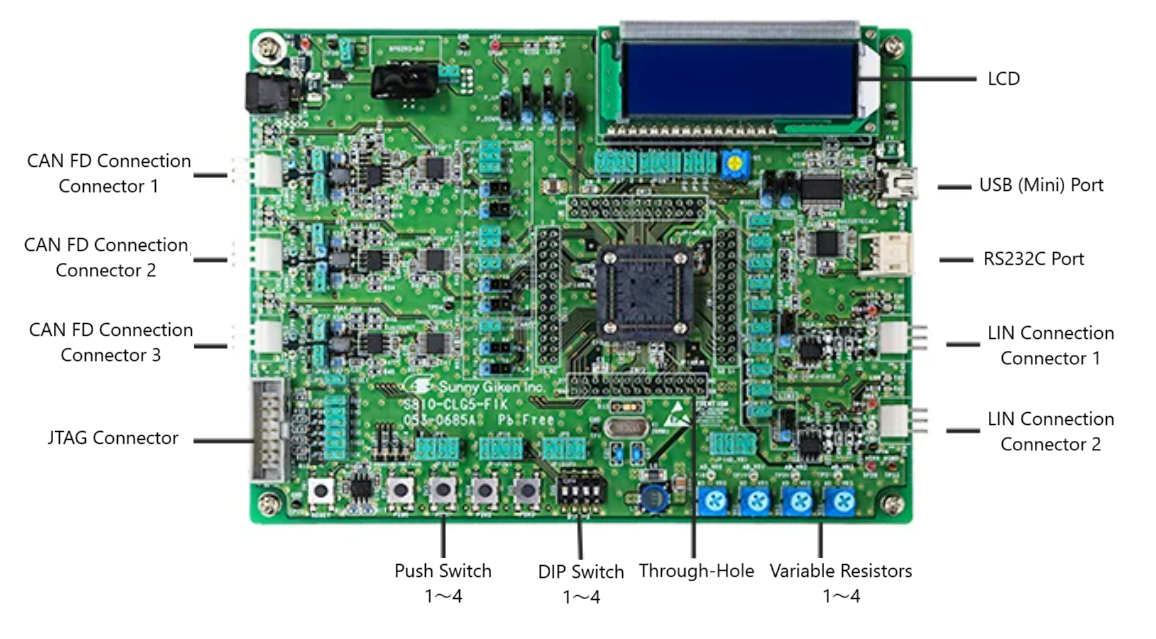

RH850/F1K evaluation board (S810-CLG5-F1K)
Specification
| Product Model | S810-CLG5-F1K | |
|---|---|---|
| Compatible microcomputers | Renesas Electronics RH850/F1K(100Pin), RH850/F1KM-S1(100Pin) [*1] | |
| Crystal Oscillator | 20MHz | |
| CAN/CAN FD transceivers | NXP Semiconductors TJA1049T (or ROHM BD41044FJ-C) [*2] | |
| LIN Transceiver | NXP Semiconductors TJA1020T | |
| CAN/CAN FD interfaces | 3ch | |
| LIN Interface | 2ch | |
| Debug Interface | UART x 1ch (USB or RS232C) | |
| E1 emulator connector x 1ch | ||
| I/O Interface | LCD (16 characters x 2 lines) | |
| 4x LED | ||
| DIP switch (4ch) x 1 | ||
| Push switch x 4 | ||
| Variable resistor x 4 | ||
| Power Input | 12V | |
| External dimensions | (W)160×(D)120(mm) *excluding protruding parts | |
| accessories | AC adapter (DC12V), hardware manual | |
[*1] This product uses a socket type configuration.
[*2] Depending on part availability, it may be replaced with ROHM’s BD41044FJ-C. *Sample software and related materials are not included.
