Sunny Giken RH850 / U2A Board S810-GPX-U2A
Manufacturer: Sunny Giken Inc.
Model : S810-GPX-U2A
Features
- This is an evaluation board equipped with the Renesas Electronics RH850/U2A microcontroller.
- It is equipped with peripheral functions that are ideal for evaluating the RH850/U2A microcontroller.

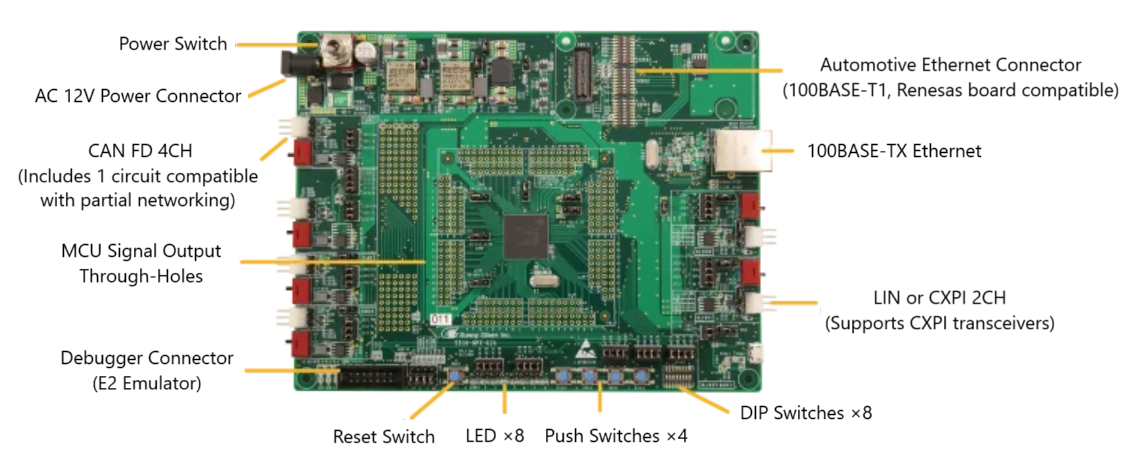

- It can also be used to evaluate next-generation in-vehicle communications, including an in-vehicle Ethernet 100BASE-T1 compatible connector and a circuit compatible with CAN FD partial networks.

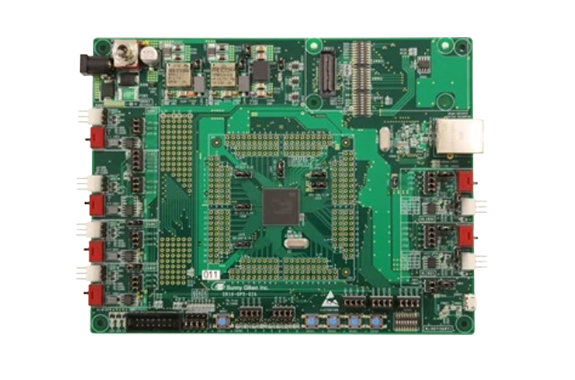

RH850/U2A Board S810-GPX-U2A
Specification
| Product Model | S810-GPX-U2A |
|---|---|
| On-board microcomputer | Renesas Electronics RH850/U2A8 292pin (R7F702301BFABG-C) |
| CAN/CAN FD transceiver | ROHM BD41044FJ-C |
| LIN transceiver | ROHM BD41030FJ-C |
| Ethernet interface | 100BASE-TX 1ch |
| CAN/CAN FD interface | 4ch |
| LIN interface | 2ch |
| UART Interface | 1ch (USB Micro-B) |
| Through Hole | 292 through holes with 2.54 pitch |
| I/O Interface | DIP switches x8 |
| Push switch x4 | |
| Reset switch x1 | |
| 8x LEDs | |
| Debug Interface | E2 emulator connector x 1ch |
| Power Input | External 12V power supply (5V/3.3V/1.09V can be generated by DCDC etc. on the board) |
| External dimensions | 180(W)x160(D)x25(H)mm *excluding protruding parts |
| accessories | Board, AC adapter, hardware manual, circuit diagram |
