Sunny Giken RL78 / F24 Board S810-CXG5
Manufacturer: Sunny Giken Inc.
Model : S810-CXG5
Features
- The RL78/F24 board “S810-CXG5” is equipped with CAN/CAN FD and CXPI interfaces for in-vehicle communication and is optimized for communication evaluation.
- It also features a USB-serial communication interface for software development using the HSM (Hardware Security Module) built into the Renesas RL78/F24 microcontroller.
- Additionally, it includes an EEPROM for reprogramming and over-the-air (OTA) software development.

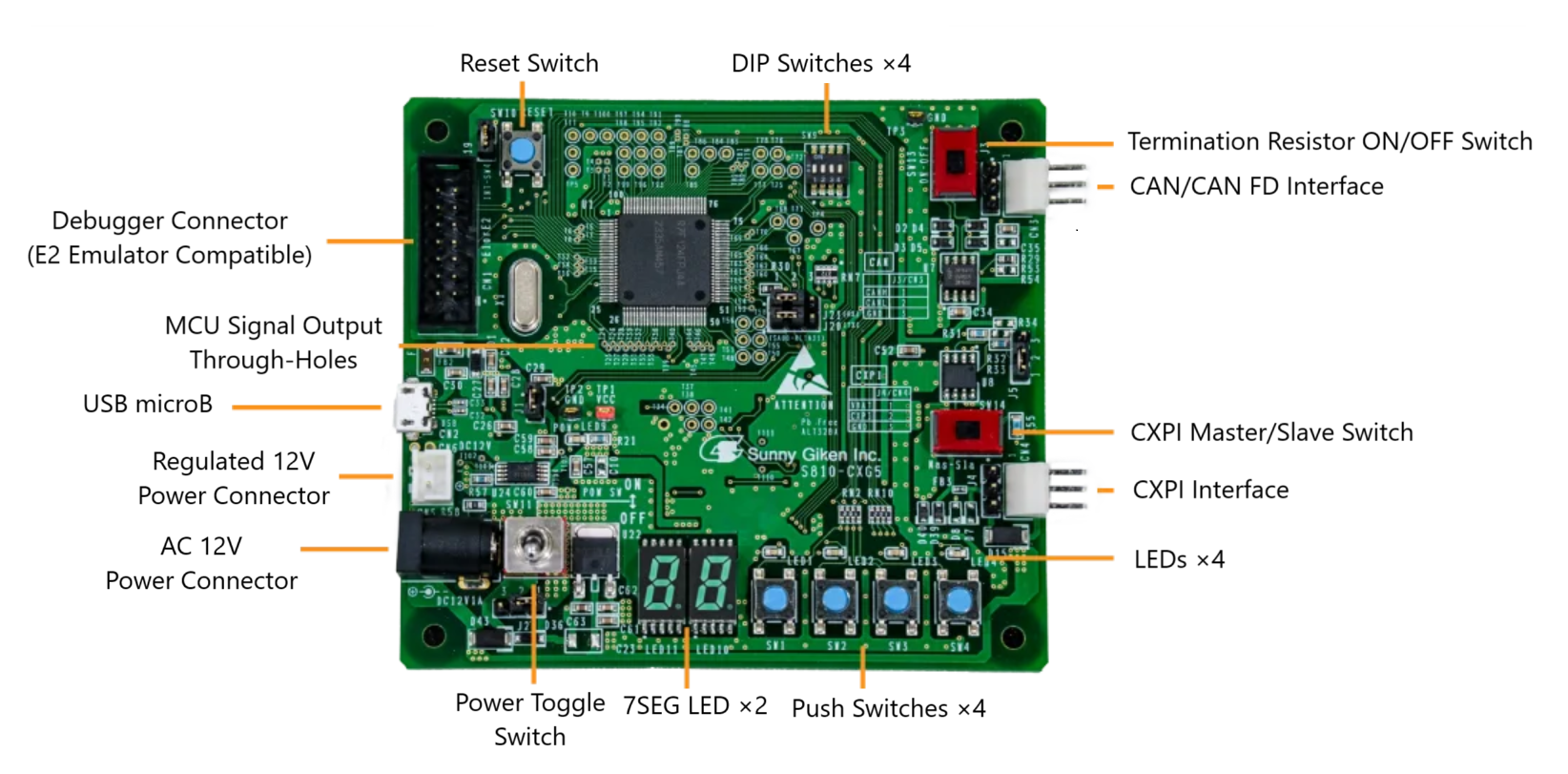

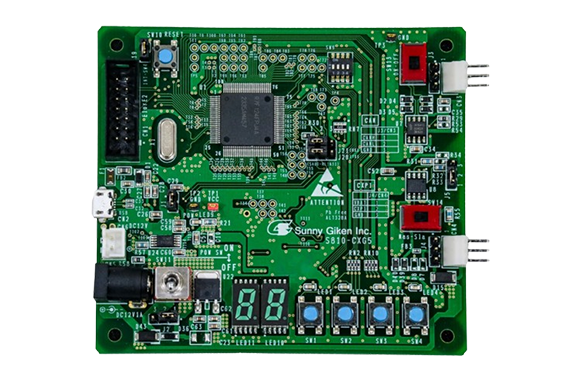

RL78 F24 Board S810-CXG5
Specification
| Product Model | S810-CXG5 |
On-board microcomputer | Renesas Electronics RL78/F24 (R7F124FPJ3AFB-C) 100pin |
CAN/CAN FD transceivers | NXP TJA1441DT/0Z |
CXPI Transceiver | ROHM BD41003FJ-C |
EEPROM | Macronix MX25V8035FM1I (Memory size: 8Mbit) |
CAN/CAN FD interfaces | 1ch |
CXPI interface | 1ch |
UART Interface | 1ch (USB micro-B) |
I/O Interface | DIP switch (4bit) x 1 Push switch x 4 Reset switch x 1 7-segment LED x 2 LED x 5 (red x 1, green x 4) |
Debug Interface | E2 emulator connector × 1ch |
Power Input | DC12V±0.6V |
External dimensions | 95(W)x85(D)mm *excluding protruding parts |
