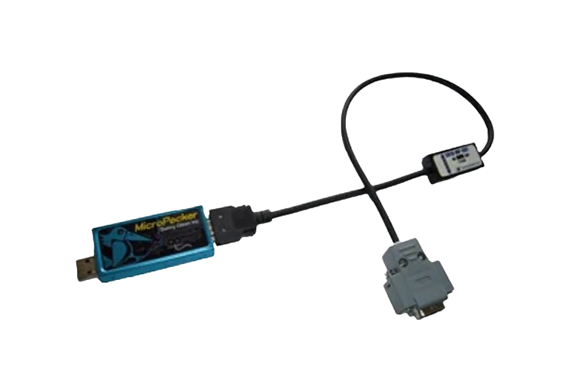

Sunny Giken S810-MP-A1 MicroPecker CAN Bus Analyzer

Manufacturer: Sunny Giken Inc.
Model: S810-MP-A.

Features

Host Interfaces		USB 2.0 High Speed (480Mbps)
Host Operating Environment	PC[*1]	IBM PC/AT compatibles
	OS[*2]	Windows 11(64bit), 10(64bit), 8.1(64bit)
	CPU	Celeron 1.6GHz or higher recommended
	hard disk	50 Mbytes or more of free space[*3]
	memory	1Gbyte or more recommended
	USB port	USB 2.0 (High Speed) compatible, required for the number of MicroPecker units to be connected[*4]
	display	Resolution: 1024×768 or higher recommended
	Other	Monitor, keyboard, mouse
power		USB Bus Power (5V, 400mA)
Dimensions[*5]		62(W)×30(D)×12(H)mm
weight		35g

[*1]: If the PC is equipped with a power-saving function, make sure that the PC does not sleep, the HDD stops, or the CPU clock drops while using this product.
[*2]: Operation in the virtual environment is not supported.
[*3]: If you want to save the logging file to the local hard disk, make sure that there is enough free space on the hard disk.
[*4]: When connecting using an external USB hub, be sure to select a self-powered device and supply power from an external source before connecting. If the USB hub is connected to a bus-powered system, it may not work or may become unstable.
[*5]: The dimensions do not include the protrusions of the connection terminals.

◆CAN cable specifications for MicroPecker

signal	CAN-Hi, CAN-Lo, GND *Uses Dsub9Pin connector
Cable length	MicroPecker – Driver unit: 150mm Driver unit – Dsub connector: 350mm Total length: 500mm
shield	can be
