Suntes DB-4144EFT Spring actuated electromagnetic release type
Manufacture: Suntes (Sanyo Shoji Co., Ltd.)
Model: DB-4144EFT
Model code

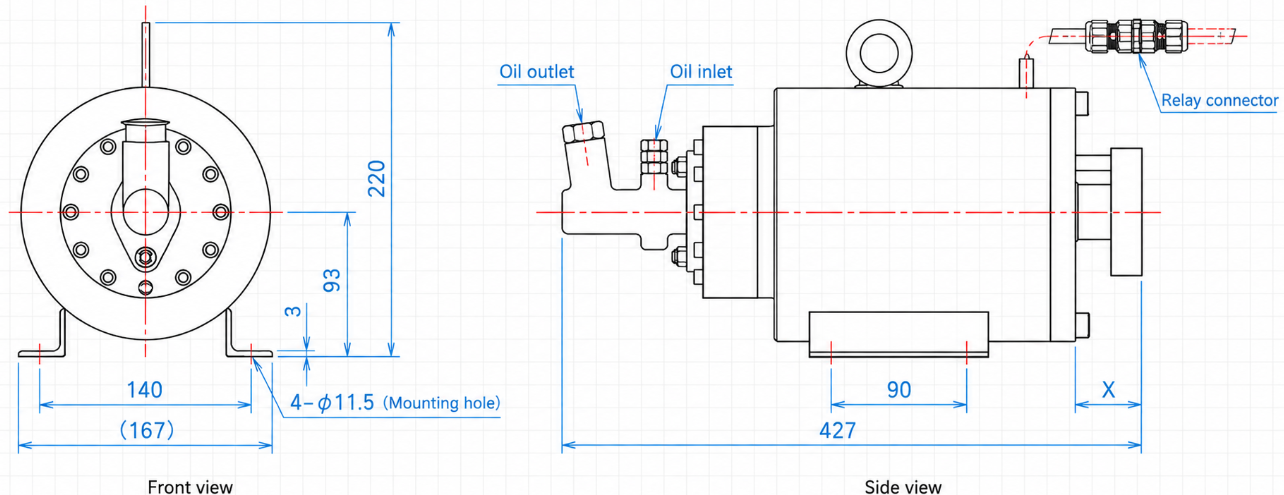

Dimensions
Common to all EBoosters: 600mm cable length with relay connector included
Specification
| Master cylinderModel | DB-2204TS-01 |
|---|---|
| Hydraulic oil | Brake fluid (DOT3 equivalent) |
| Discharged oil volume( cm3 ) | 4.8 |
| Supply suction voltage(V) | DC150～210 |
| Supply Holding Voltage(V) | DC20～31 |
| Power Consumption(W) | 22 (Continuously held at DC31V) |
| Rating | 360 cycles/h 50% ED,Or maintain continuous current |
| Required power capacity(VA) | 1912 |
| Applicable power supply box | AP-2403 |
| mass(kg) | 33 |
Generated hydraulic pressure
If you have any questions about specifications, please contact us.
The dimensions and specifications listed may be changed without notice for improvement purposes.
