Suntes ON, OFF shifter TY type torque reliever
Manufacture: Suntes (Sanyo Shoji Co., Ltd.)

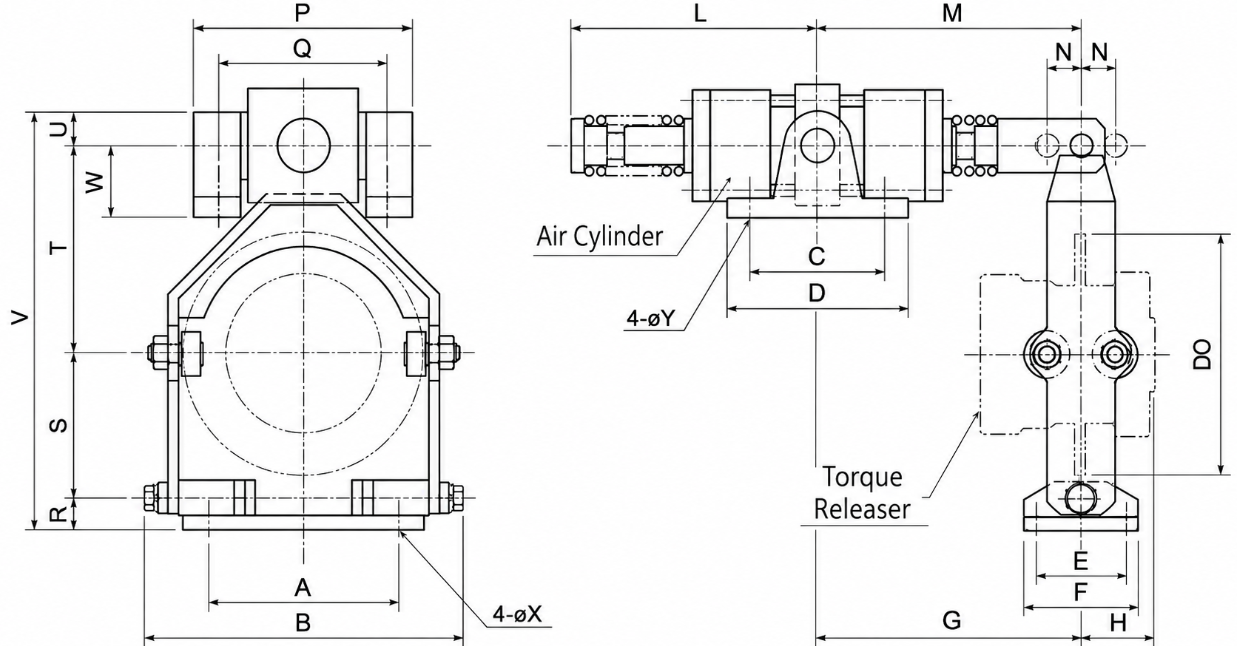

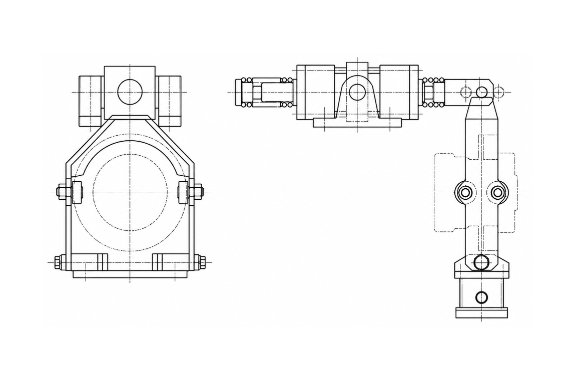

Size
| Model | A | B | C | D | E | F | G | H | L | M | N | P |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TY30 | 120 | 189 | 70 | 100 | 55 | 75 | 169 | 45.5 | 124 | 169 | 15 | 150 |
| TY40 | 140 | 219 | 90 | 120 | 65 | 90 | 177 | 46.5 | 147 | 177 | 15 | 192 |
| TY50 | 180 | 266 | 90 | 120 | 80 | 110 | 182 | 56.0 | 152 | 182 | 17.5 | 214 |
| TY65 | 220 | 321 | 105 | 145 | 100 | 130 | 222 | 64.5 | 182 | 222 | 22.5 | 236 |
| TY85 | 290 | 398 | 140 | 185 | 100 | 130 | 246 | 91.0 | 201 | 246 | twenty five | 294 |
| Model | Q | R | S | T | U | V | W | φX | φY | φD0 | Air Cylinderspecification (φmm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TY30 | 130 | 20 | 90 | 135 | 18 | 263 | 55 | 10 | 11 | 150 | 63 × 30ST |
| TY40 | 166 | twenty five | 110 | 165 | twenty five | 325 | 75 | 12 | 13.5 | 175 | 80 x 30ST |
| TY50 | 188 | 30 | 130 | 195 | twenty five | 380 | 75 | 14 | 13.5 | 210 | 100 x 35ST |
| TY65 | 203 | 35 | 150 | 225 | 32 | 442 | 85 | 14 | 18 | 250 | 125 x 45ST |
| TY85 | 253 | 35 | 190 | 285 | 40 | 550 | 130 | 18 | twenty two | 330 | 160 x 50ST |
If you have any questions about specifications, please contact us.
The dimensions and specifications listed may be changed without notice for improvement purposes.
