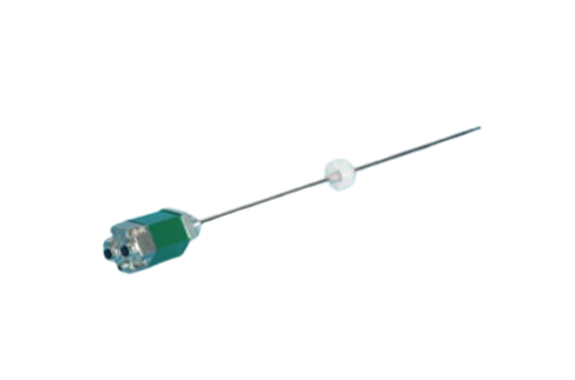

Suntest GY Series GYSE-EP2 Probe

Manufacturer: Suntest Co.,Ltd
Model: GYSE-EP2

Magnetostrictive Displaiacement Transducer

Model GY Series are “Displacement Transducers” employing magnetostrictive phenomena, especially the Wiedemann effect. An ultra-sonic wave is generated by a moving magnet operating near a magnetostrictive wave guide on which the sonic wave propagates up to the head of the transducer.
The propagation time is precisely measured by state of the art technology and then the absolute displacement transducer is operational.

[ Principle ]

The figure shows the fundamental principle of operation.
When a current pulse like A is given to the wave guide, it generates a circumferential magnetic field on the wave guide, then placement of the movable magnet (polarized axially) as shown, only the axial magnetic field of the magnet affecting the wave guide produces a resultant field as indicated by the dotted line.
The vector combination of these two fields produces torsional strain, a phenomenon known as the Wiedemann Effect.
It is a form of vibration and propagates along the wave guide in the form of a transverse ultra-sonic wave.
The GY series displacement transducers detect the propagation time of the ultra-sonic wave.

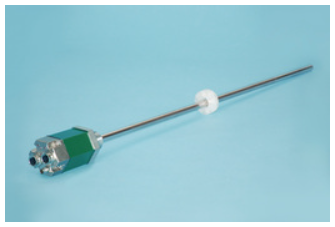

GYSE-EP2 Probe

EtherNet/IP interface
（ detachable probe element ）

GYSE-EP2 is EtherNet/IP interface.
It is an adapter device that outputs position/velocity of magnets via EtherNet/IP.
Detecting up to 20 pcs of magnets on one probe is possible.
The inside probe element can be detached from the outer housing.

Noise Cancellation

Specifications

Non-linearity	≦±0.025%FS Typ.
Resolution	Position: Min. 1um (multi-magnet: Min. 10μm) Velocity: Resolution 1μm/sec (velocity 1mm/sec or higher) Set by “Configuration Assembly”
Repeatability	≦±0.001%FS (≦Min.±3μm)
Temp. drift	≦±15ppmFS/°C
Output	EtherNet/IP
Power supply	+24VDC(±5％)(110mA)
Sampling freq. (＊)	1kHz (≦1300mm) 500Hz (≦2400mm) 250Hz (≧2401mm)
Max. Pressure	35MPa(probe rod)
Operating temp.	-20°C〜+75°C
Storage temp.	-40°C〜+90°C
Vibration	15G(10-100Hz)
Shock	100G(2msec)
IP grade	IP67

The above mentioned accuracy applies to sensors with an effective stroke of 300mm or more.
The specification of stroke less than 300mm is equal that of stroke 300mm.

(*) In case of multi magnets on one probe, sampling frequency is not standard value.

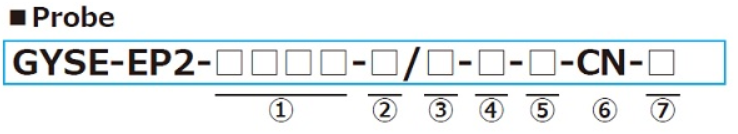

Model No.

① Effective stroke
15〜7500mm

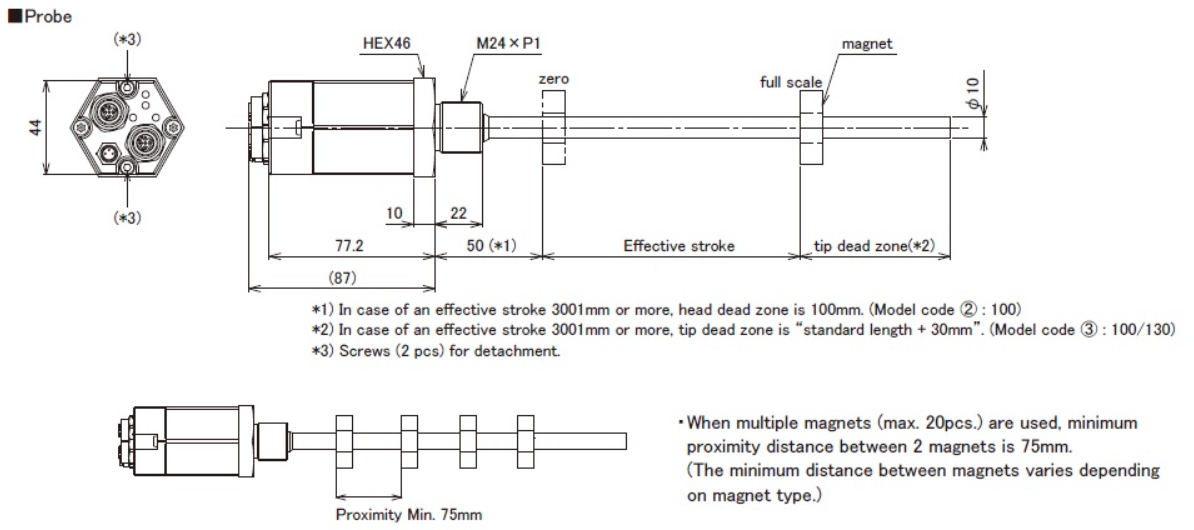

②Head dead zone
50: 50mm( Std.)
□: □mm (option)(specified by customers)

・Possible Min. length depends on the selected magnet.

③ Tip dead zone
□:70mm/ 100mm(Std.)

□	tip DZ	magnet
70	70mm	M2PN, M3, M11N
100	100mm	T144, T163

□:□mm (option)(specified by customers)
・Possible Min. length depends on the selected magnet or float.
④ Thread / Rod diameter
M :M24xP1.0, rod Φ10 (Std.)
N :M18xP1.5, rod Φ10
M14:M24xP1.0, rod Φ13.8

⑤ Associated magnet
M2PN :No.2PN (Std.)
M3 :No.3
M11N :No.11N
T144 :No.T14-M4
T163 :No.T16-M3

・Selecting magnet from page 116〜118(GG)．
・Please consult our factory in case of requesting special magnet or float.
・This model code means only specifying associated magnet or float.
・Ordering magnet or float individually.

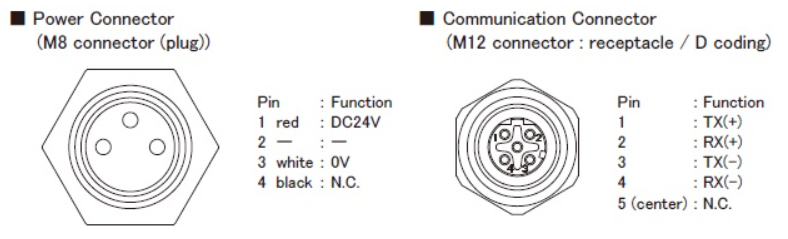

⑥ Cable connection
CN :Connector (Std.)

⑦ Option
blank :without option
SRT :SRT option
・Please confirm the details of SRT option on page 114.
