Suntest GYSE-EP2-PF Probe

Manufacturer: Suntest Co.,Ltd
Model: GYSE-EP2-PF

Magnetostrictive Displaiacement Transducer

Model GY Series are “Displacement Transducers” employing magnetostrictive phenomena, especially the Wiedemann effect. An ultra-sonic wave is generated by a moving magnet operating near a magnetostrictive wave guide on which the sonic wave propagates up to the head of the transducer.
The propagation time is precisely measured by state of the art technology and then the absolute displacement transducer is operational.

[ Principle ]

The figure shows the fundamental principle of operation.
When a current pulse like A is given to the wave guide, it generates a circumferential magnetic field on the wave guide, then placement of the movable magnet (polarized axially) as shown, only the axial magnetic field of the magnet affecting the wave guide produces a resultant field as indicated by the dotted line.
The vector combination of these two fields produces torsional strain, a phenomenon known as the Wiedemann Effect.
It is a form of vibration and propagates along the wave guide in the form of a transverse ultra-sonic wave.
The GY series displacement transducers detect the propagation time of the ultra-sonic wave.

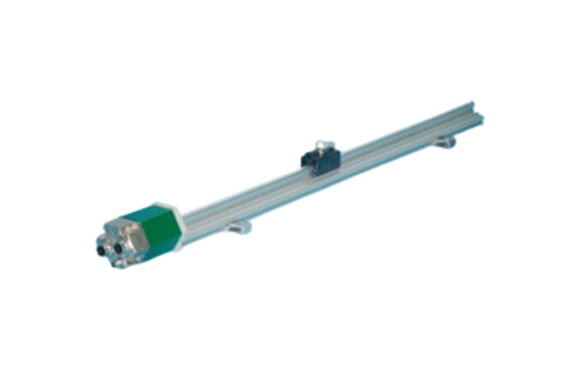

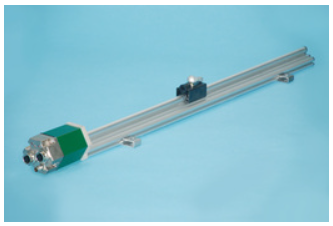

GYSE-EP2-PF probe

EtherNet/IP interface
（detachable probe element）

GYSE-EP2-PF of profile type is EtherNet/IP output type sensor.
It is an adapter device that outputs displacement/velocity of magnets via EtherNet/IP.
The position/velocity of up to 20 sensing magnets can be detected with a sensor.
The sensor element can be detached from the housing and replaced.

Specifications

Non-linearity	≦±0.025%FS Typ.
Resolution	Position: Min. 1um (at multi-magnet: Min. 10μm) Velocity: Resolution 1μm/sec (at velocity 1mm/sec or higher) Set by “Configuration Assembly” at the start of communication.
Repeatability	≦±0.001%FS (≦Min.±3μm)
Temp. drift	≦±15ppmFS/°C

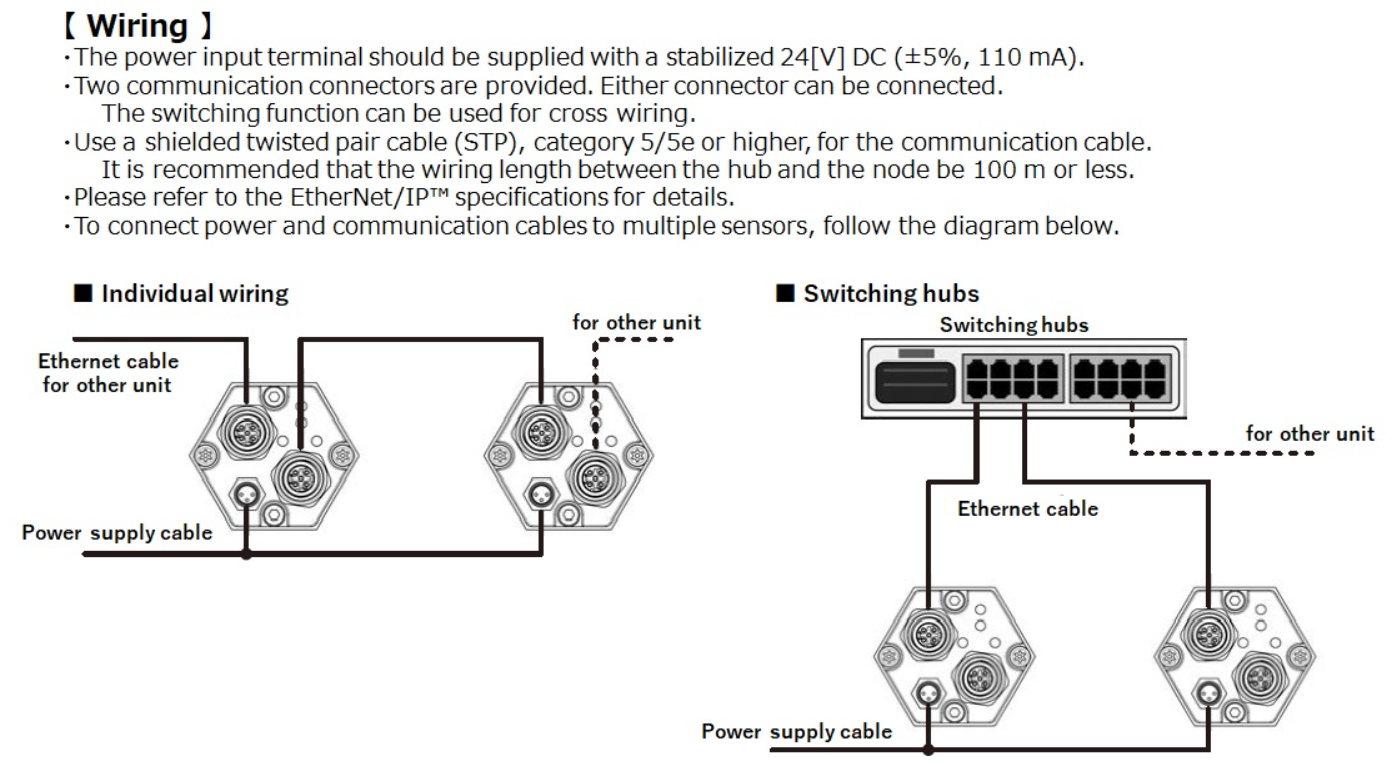

Output	EtherNet/IP
Power supply	+24VDC(±5％)(110mA)
*Sampling freq. ()**	1kHz (≦1300mm) 500Hz (≦2400mm) 250Hz (≧2401mm)
Operating temp.	-20°C-+75°C
Storage temp.	-40°C-+90°C
Vibration	15G(10-100Hz)
Shock	100G(2msec)
IP grade	IP67

　・The above mentioned accuracy applies to sensors with an effective stroke of 300mm or more.
・The specification of stroke less than 300mm is equal that of stroke 300mm.
(*) In case of multi magnets on one probe, sampling frequency is not standard value.
・Fixing clamps are supplied. (One clamp is added every 500mm.)
stroke < 600mm:2 pcs
600-1000mm:3 pcs
1001-1500mm:4 pcs
1501-2000mm:5 pcs

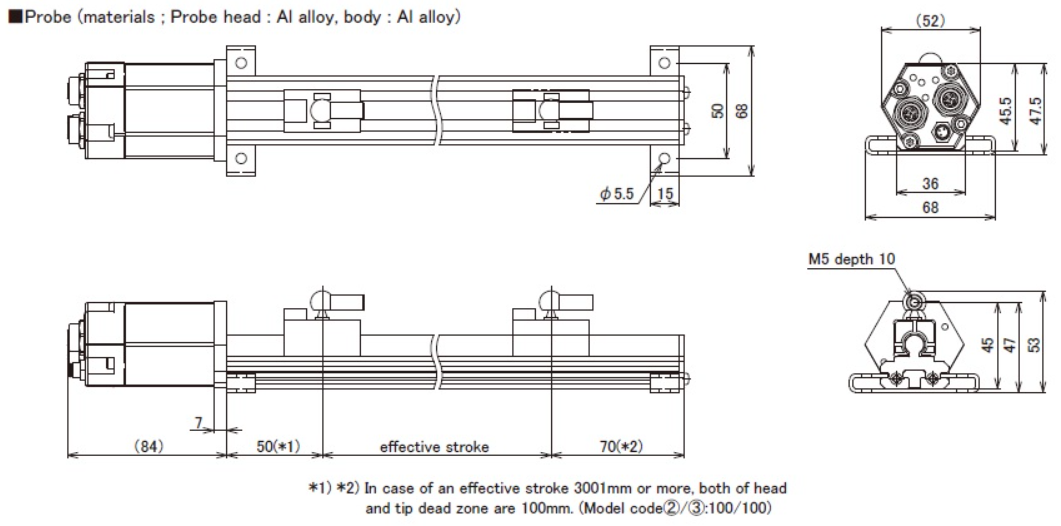

Model No.

① Effective stroke
15〜7500mm

② Head dead zone
50:50mm(Std.)
□:□mm (specified by customers)
・Possible Min. length depends on the selected magnet.

③ Tip dead zone
70:70mm(Std.)
□:□mm (option)(specified by customers)
・Possible Min. length depends on the selected magnet.

④ Associated magnet
PFU:PFU slide magnet
FE :No.5N-UK
BP : No.5PFT-LG
M11N: No.11N
M11S: No.11S
・Please consult our factory in case of requesting special magnet.
・This model code means only specifying associated magnet.
・Ordering magnet individually.

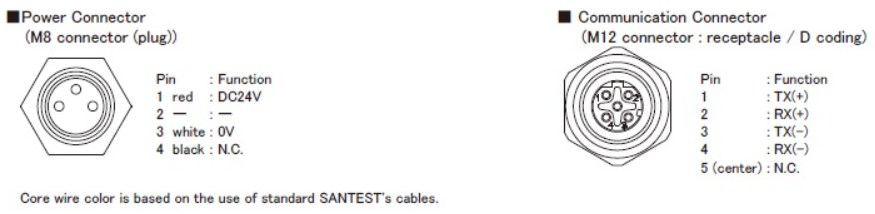

⑤ Cable connection
CN: connector

⑥ Clamp
F50: With clamp
N: without clamp
・The number of clamps is determined by the stroke.
・If you need more clamps, please specify separately.
・Please refer to page 118 for the drawing of clamps.
