Manufacturer: Suntest Co.,Ltd
Model: GYSE-Q-PF

Magnetostrictive Displaiacement Transducer

Model GY Series are “Displacement Transducers” employing magnetostrictive phenomena, especially the Wiedemann effect. An ultra-sonic wave is generated by a moving magnet operating near a magnetostrictive wave guide on which the sonic wave propagates up to the head of the transducer.
The propagation time is precisely measured by state of the art technology and then the absolute displacement transducer is operational.

[ Principle ]

The figure shows the fundamental principle of operation.
When a current pulse like A is given to the wave guide, it generates a circumferential magnetic field on the wave guide, then placement of the movable magnet (polarized axially) as shown, only the axial magnetic field of the magnet affecting the wave guide produces a resultant field as indicated by the dotted line.
The vector combination of these two fields produces torsional strain, a phenomenon known as the Wiedemann Effect.
It is a form of vibration and propagates along the wave guide in the form of a transverse ultra-sonic wave.
The GY series displacement transducers detect the propagation time of the ultra-sonic wave.

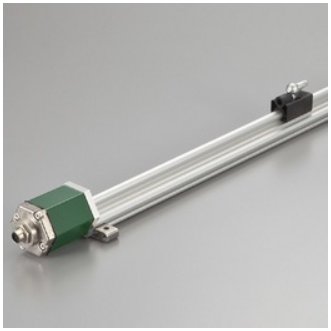

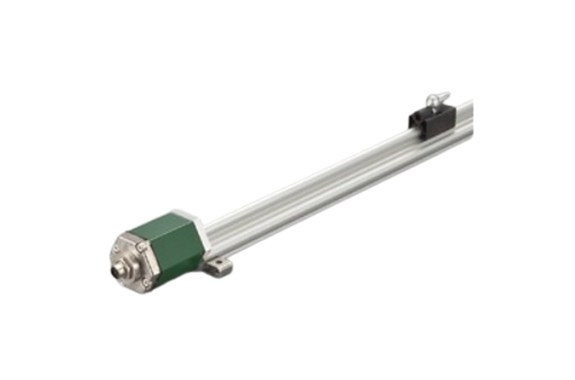

GYSE-Q-PF Probe

Quasi-incremental output
(detachable probe element)

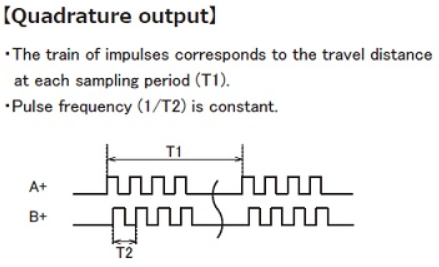

This is the linear profile version of GYSE-Q. It has the incremental output (A/B pulse), the resolution is Min.1μm (Quad divide). The working principle is based on a sampling detection method, in which pulse frequency is fixed to 250kHz or 500kHz (it depends on resolution). GYSE-Q doesn’t output the pulse which continued like a linear encoder, so please be careful. The inside probe element can be detached from the outer housing, and with the captive software (GPM), zero and gain adjustment is possible at user side.

• CE marking
• Noise cancellation
• GPM setting

Specifications

Model No.

① Effective stroke
15〜7500mm

② Head dead zone
50 :50mm (Std.)
□ :□mm ( option ) ( specified by customers )
・Possible Min. length depends on the selected magnet or float.

③ Tip dead zone
70 :70mm(Std.)
□ :□mm ( option ) ( specified by customers )
・Possible Min. length depends on the selected magnet or float.

④ Associated magnet
PFU :PFU slide magnet
FE :No.5N-UK
BP :No.5PFT-LG
M11N : No.11N
M11S : No.11S

・Please consult our factory in case of requesting special magnet.
・This model code means only specifying associated magnet.
・Ordering magnet individually.

⑤ Cable connection
8P:connector (M12-8pin)
△G□F:pigtail / cable end : free
△G□A:pigtail / cable end : with connector for relay
(□:cable length(m), Max.10m)(*)
(△:cable type
S:standard, H:high temp. cable, R:robot cable, UL : cUL cable)
CN:existing connector (Please refer to page 115 of option.)

(*) In case of using extension cable sensor cable (m) + extension cable (m) ≦ 100m
・Please confirm extension cable on page 120-122.
・Ordering loose mating connector individually

⑥ Resolution
D2 :0.1mm
D3 :0.05mm
D4 :0.01mm(Std.)
D5 :0.005mm
D7 :0.002mm
D8 :0.001mm

⑦ Direction
D :When magnet moves toward tip, output increase
R :When magnet moves toward tip, output decrease

⑧ Pulse frequency
1:1MHz
2:500kHz(Std. in case of ⑥ resoluton:D7, D8)
3:250kHz(Std. in case of ⑥ resolution:D2〜D5)
4:125kHz
6:31kHz
7:15kHz

・Allowable magnet speed depends on the selected resolution and pulse freq. Allowable speeds for Std. setting are as below.

(*) For the noise cancellation function

⑨ Clamp
F50 :with fixing clamps
N　 :without fixing clamps
・ Standard pcs (depend on stroke) of the clamp are supplied.
Possible to order extra pcs individually.
・ Please refer to page 118 for clamp drawings.

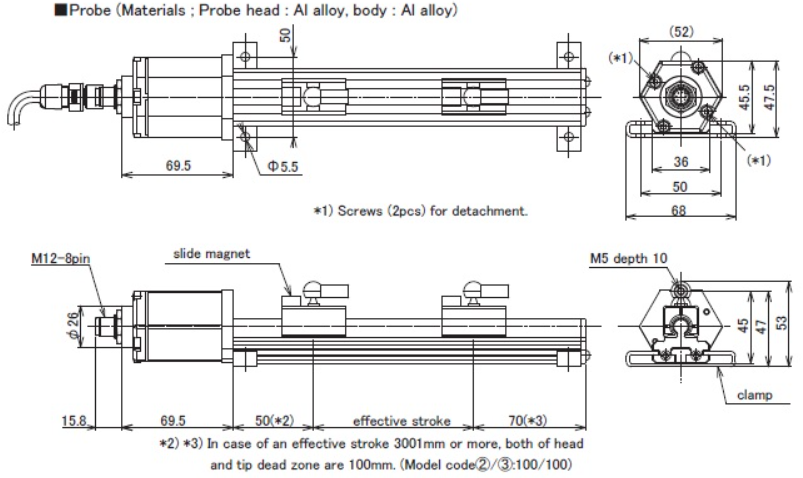

Dimensions

Probe

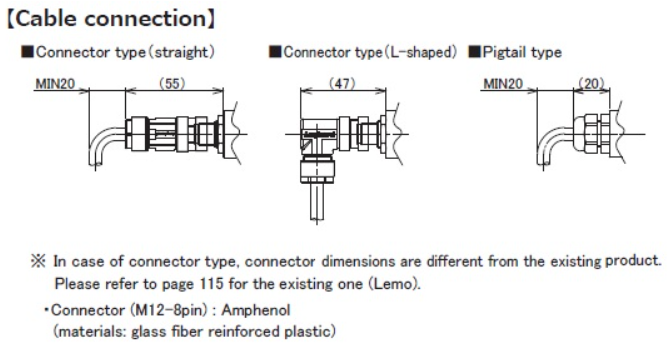

Cable connection

Detachable probe element

Cable

• shield should be connected to FG of user’s unit.
