Manufacturer: Suntest Co.,Ltd
Model: IRDM-EIT
This is an Ethernet communication adapter of IRD series and all data in IRD system are transferred to the Ethernet master device.
As the protocol is Modbus/TCP, it is possible to exchange data or the parameters through VC# and VB.NET application with LAN port of Windows PC with using IRD Ethernet communication library (DLL).
Special communication board isn’t necessary.
Model
IRDM (1) -EIT (2) – (3)
(1) series
IRDM : IRD master module
(2) network function
EIT : Ethernet(Modbus/TCP)
(3) special specification code
| blank | : standard |
| others | : customer’s special option |
Calculation of maximum available modules
If you would use more than one slave module, the calculation of the connection possible number is needed beforehand. The following condition gives the number of the possible module attached.
Condition 1
| Number of master module | = 1 |
| Number of slave modules | ≤ 9 |
| Occupied memory block | ≤ 64 |
Condition 2 (additional condition by the type of master module)
| Total input byte | ≤ 256 |
| Total output byte | ≤ 256 |
Occupied memory block and input /output bytes
| Module series | Memory block | Input byte | Output byte |
|---|
| IRDM-EIT | 0 | 0 | 0 |
Specifications
| Items | Specifications |
|---|
| Modbus/TCP | device type | slave device |
| cable | ≥category 5 (STP straight cable) |
transmission
speed | 100BASE-TX/10BASE-T
auto negotiation |
| connector | ISO8877 (RJ45) |
Power
supply | rating | DC24V (±10%) |
consumption
current | ≤110mA (olny this module) Total current value in the system should be summed up each
consumption current of all IRD slave modules. |
External
alarm
output | rating | photo relay output (ON when abnormality detected)
rating 24V, Max. 32V (0.05A)
ON:Max. 1.5Ω |
External
clear input | rating | bipolar optocoupler input
rating 24V (18~32V)
alarm clear input 3kΩ |

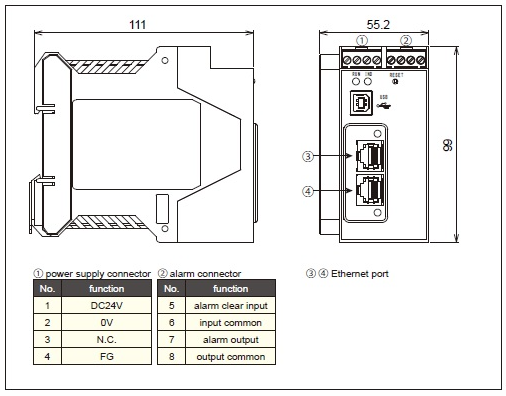

Dimensions
