Suntest

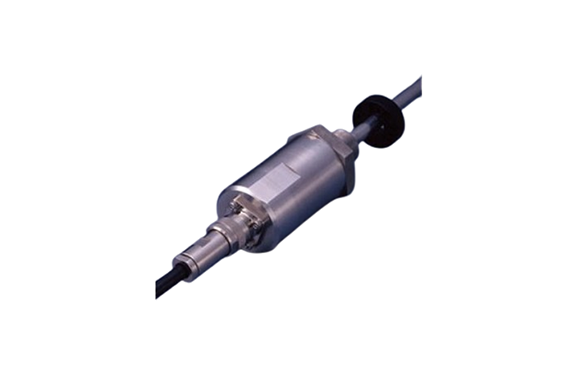

Suntest Option-2: Waterproof Probe (IP-68)
Manufacturer: Suntest Co.,Ltd
Robust outer case and connector offer GY waterproof series and can be used in upto 300kPa (underwater 30 meter) pressure. Application in submarine robot, watergate etc are examples. You can select the inside sensor element from All-in-one type (GYcAT, GYAF1, GYRHP-MRA) or Separated controller type (GYcRP, GYcRS, GYFRS, GYRHP-MR6).
◎IP grade IP68
Can be used continuously submerged under water up to the specified water pressure.
(This sensor can be used up to 300kPa.) (Max. depth: 30m)
Model No.
IP – □□
IP: degree of protection(International Protection) IEC(International Electrotechnical Commission) standard
□: degree of protection against dust(0～6) 6 means no ingress condition
□: degree of protection against water ingress(0～8) 7 and 8 means usage in water immersed condition
Dimensions
GYAF1 / GYFRS

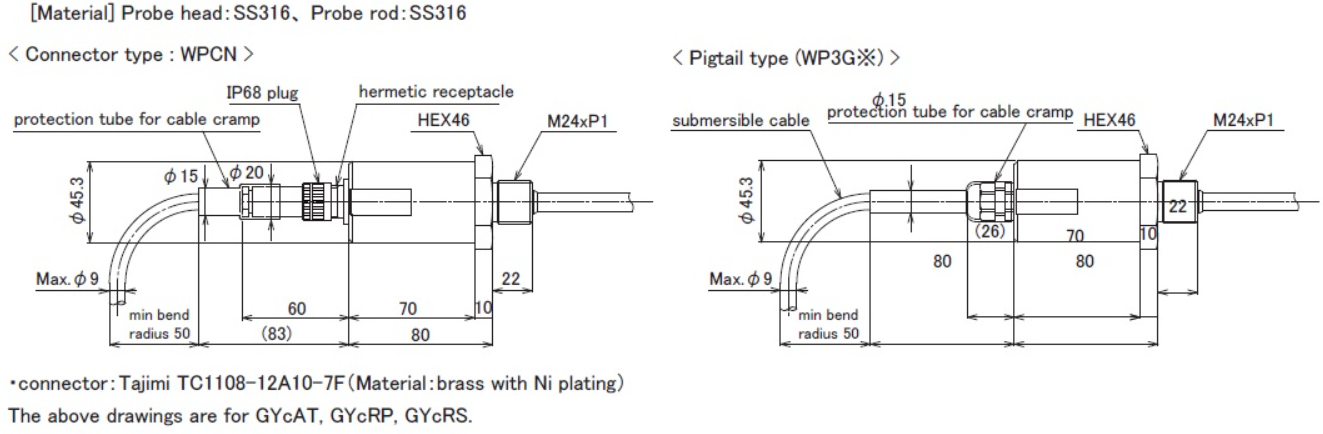

GYcAT / GYcRP / GYcRS
Material probe head : SS316
Probe rod : SS316
