Suntest Option-9: The Existing Connector For GYSE
Manufacturer: Suntest Co.,Ltd
In case of requesting the former GYSE connector type, please specify “CN” for cable connection ⑥ in probe type number.
new : 8P (M12-8pin)
former : CN(Lemo)

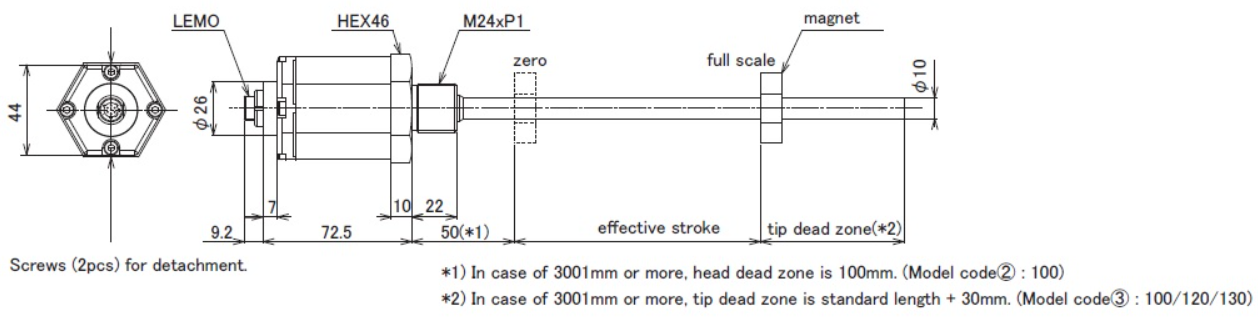

Dimensions
Probe

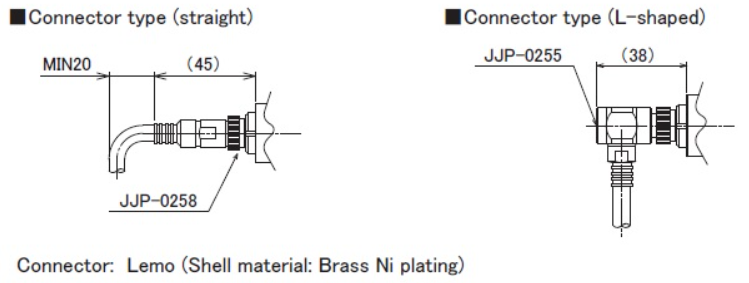

Connector type
Cable
| Wire color | Pin number |
|---|---|
| red | 1 |
| white | 2 |
| blue | 3 |
| green | 4 |
| brown | 5 |
| black | 6 |
| yellow | 7 |
shield should be connected to FG of user’ s unit.
