Suntest ST-SP323 Display Unit
Manufacturer: Suntest Co.,Ltd
Model: ST-SP323

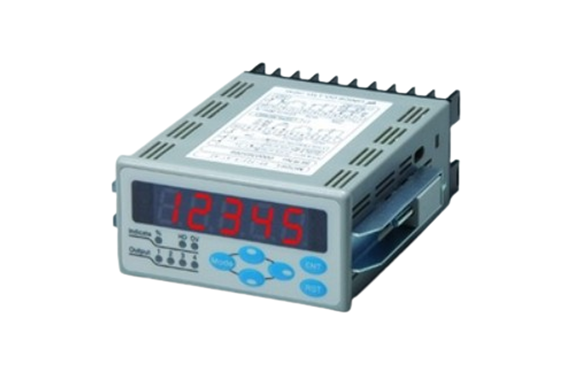

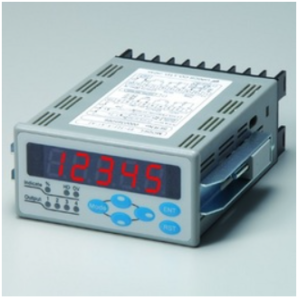

ST-SP323 Display unit
Digital panel meter
- 5 digits
- 4〜20mA input
- Power supply DC24V
- 4〜20mA output available (option)
- with alarm output (relay form C x 2)
- with power supply 24VDC for sensor(150mA)
- with linearization function
Specifications
| Measurement | A/D conversion Resolution: approx. 1/22000 Measuring interval : approx. 20msec |
|---|---|
| Display | Red LED, 5 digit, height :14mm -9999〜99999 |
| Accuracy | ±0.1％FS ± 1digit |
| Linearization | 21 points (selectable) |
| Input | 4〜20mA |
| Alarm | Relay form C×2 AC250V 0.3A or DC30V 2A |
| 4〜20mA output (option) | 4〜20mA (load :Max.500 kΩ) Accuracy : ±0.1%FS for displayed value Temp. drift : ±50ppm/°C (0〜50°C) Response : approx. 1ms Resolution : 1/55000 |
| Power supply | +24VDC±10% (≧20W) ( Inrush current : 800mA ( 1sec ) ) |
| Environment | temp. 0-50°C, 30-80%RH(no dewing) |
- By option, 8 points of the switch output are available. In that case, analogue output is not available.
- By option, power supply AC 100V is available.

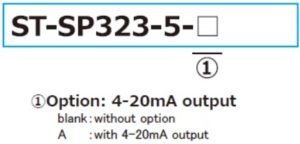

Model No.

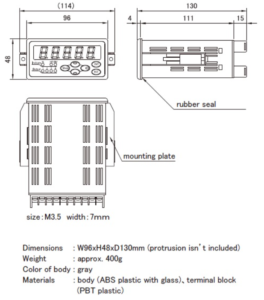

Dimensions
Dimensions

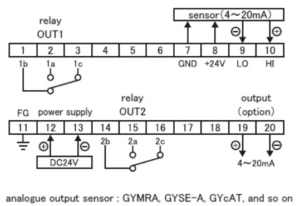

Wiring
