T0-0201 Insulation Ring Terminal
Model: T0-0201
※Representative image
Copper (Cu).
Tin plating.
| Model Number | Specification | Dimensions (mm) | Standard Color | Applicable Wire Range | ||||||
|---|---|---|---|---|---|---|---|---|---|---|

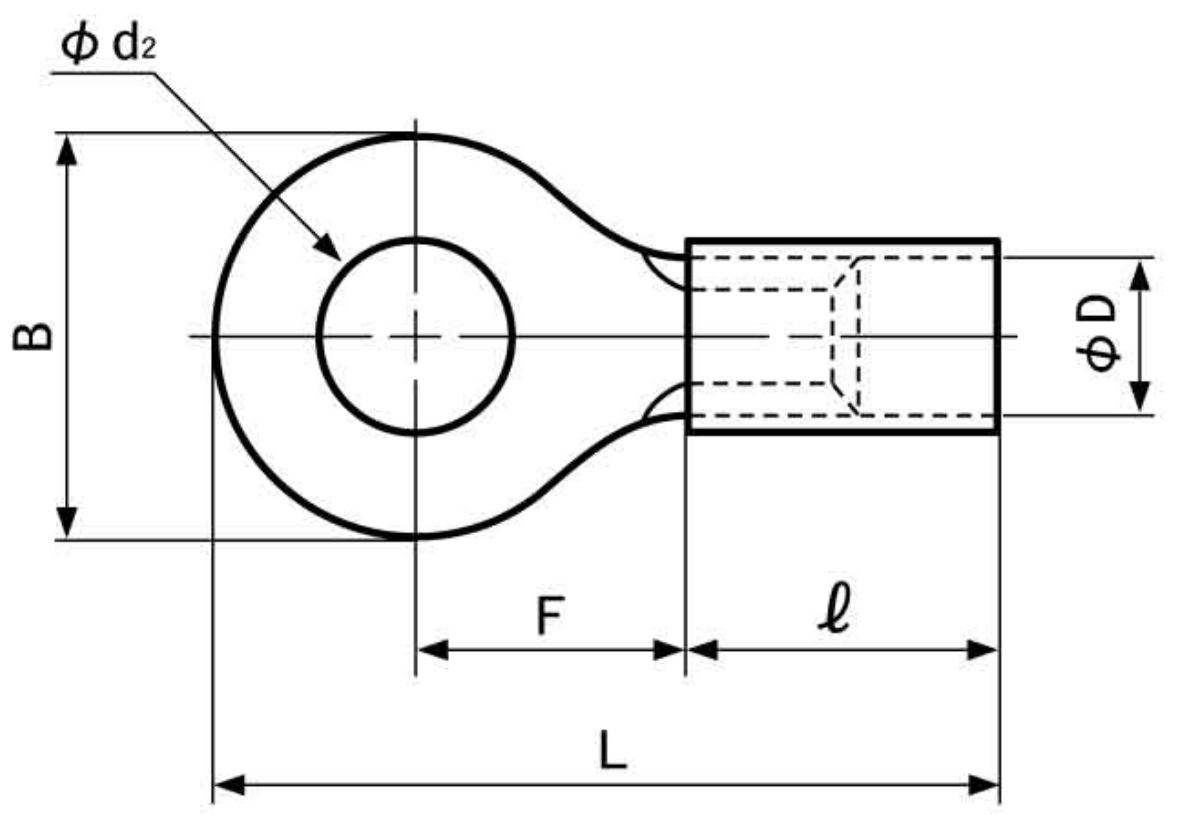

| Φd2 | B | L | F | ℓ | ΦD | Plate Thickness | Stranded Wire (mm²) | |||
| V1.25-3(RAV1.25-3) | | 3.2 | 5.5 | 15.7 | 4.0 | 9.0 | 3.2 | 0.8 | Red | ※0.25〜1.65 ※0.3 (AWG#22) 0.5 (AWG#20) 0.75 (AWG#18) 0.9 1.25 (AWG#16) |
| V1.25-4(RAV1.25-4) | | 4.3 | 8.0 | 20.0 | 7.0 | |||||
| V1.25-5(RAV1.25-5) | | 5.3 | 8.0 | 20.0 | 7.0 | |||||
| V2-4(RAV2-4) | | 4.3 | 8.5 | 21.0 | 7.8 | 3.9 | Blue | 1.04〜2.63 1.25 (AWG#16) 2.0 (AWG#14) | ||
| V2-5(RAV2-5) | | 5.3 | 9.5 | 21.0 | 7.3 | |||||
| V2-6(RAV2-6) | | 64 | 12.0 | 26.0 | 11.0 | |||||
| V2-8(RAV2-8) | | 8.4 | ||||||||
| V5.5-4(RAV5.5-4) | | 4.3 | 9.5 | 26.5 | 8.3 | 13.5 | 5.4 | 1.0 | Yellow | 2.63〜6.64 3.5 (AWG#12) 5.5 (AWG#10) |
| V5.5-5(RAV5.5-5) | | 5.3 | ||||||||
| V5.5-6(RAV5.5-6) | | 6.4 | 12 | 32.5 | 13 | |||||
| V5.5-8(RAV5.5-8) | | 8.4 | 15 | 34.7 | 13.7 | |||||
| V5.5-10(RAV5.5-10) | | 10.5 | ||||||||
- ( ) indicates the JIS standard shape number. The JIS standard shape product and JST shape product are the same. Standard No. JIS C 2805
- ※ When the total cross-sectional area of the wires is 0.5 mm² or more, usage will be more accurate. (Example: fold 0.3 mm wires twice for crimping, use 0.5 mm wires as is)
- Some of these products may require longer delivery times.
