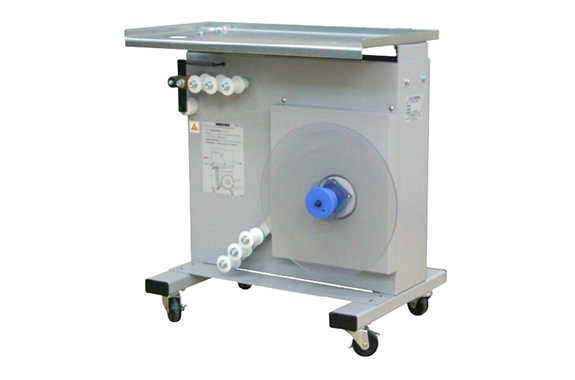

Taiyo Seiki BCS Series Big Coil Stand

Manufacturer: Taiyo Seiki
Model: BCS Series

For long film tape and paper tape.

Higher efficiency.
Easy portable type.

SPECIAL FEATURES

Using long tape rolls, less frequency of loading new tape rolls is secured.
Easy moving of the machine due to four free casters.

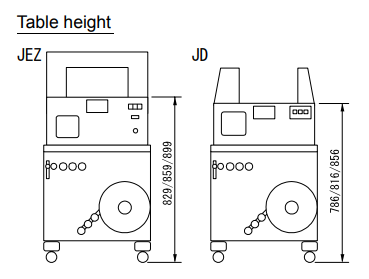

Table height is adjustable in three position.

●JEZ and JD models can be used on this tape stand.
●JEZ and JD now ready in your factory can be used
(simple and easy modification required).

MACHINE SPECIFICATIONS

Model Tape width (mm)	Width	Height	Depth	Allowable tape
BCS-30/40-JD For JD only	500mm	601mm +40mm -30mm	376mm	Paper tapes Film tapes
BCS-30/40-JEZ300 For JE-300 only	547.5mm
BCS-30/40-JEZ400 For JEZ-400 only	647.5mm

Model Tape width (mm)

Width

Height

Depth

Allowable tape

BCS-30/40-JD For JD only

500mm

601mm

+40mm
-30mm

376mm

Paper tapes Film tapes

BCS-30/40-JEZ300 For JE-300 only

547.5mm

BCS-30/40-JEZ400 For JEZ-400 only

647.5mm

COM TAPE SPECIFICATIONS

Type	Width	Thickness
Paper	30mm/40mm	Brown paper 70 grams type White paper 80 grams type
Film	30mm/40mm	40m/60m/80m/100p

●Carefully determine tape types.
●Special tapes such as colored tapes, printed tapes, etc. are also available.
●Specifications subject to change without notice.
