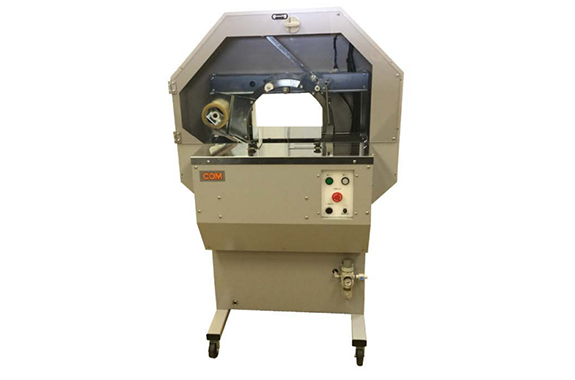

Taiyo Seiki RA Series Automatic Taping Machine
Manufacturer: Taiyo Seiki
Model: RA Series
Stand-alone type using adhesive/semi adhesive tape
FEATURES
- Using adhesive tapes, secure banding around slippery workpiece is resulted.
- Tapes available on the market can be used.
- Semi-adhesive tapes ( masking tapes ) will not damage the product surface.
- Only negligible thin film of bonded remains there after removing banded tapes.
- 1 or 2 or 3 banding cycles in continuous run can be set.
- Operations can be started as soon as the power switch is turned on.
- Due to the through-hole design, even long bars can be banded.
PERFORMANCE
| Banding size | Max. ( width 200mm, height 160mm ) |
| Banding speed | 25 cycles (1 banding cycle ) |
| Banding cycles | 1 or 2 or 3 banding cycles |
SPECIFICATIONS
| Width | 920mm |
| Height | 1425mm ( table height 912mm ) |
| Depth | 603mm |
| Weight | 120kg |
| Power supply | 230V, 50/60Hz, Three-Phase. 300W |
| Air pressure | 0.5MPa |
| Air consumption | 39dm3/min(ANR) |
TAPE SPECIFICATIONS
| Type of tape | Adhesive. Semi-adhesive |
| Tape width | 12mm〜50mm ( outer diameter 250mm ) |
Special models can be designed and produced.
Design and specifications are subject to change without notice.
