Taiyo Seiki

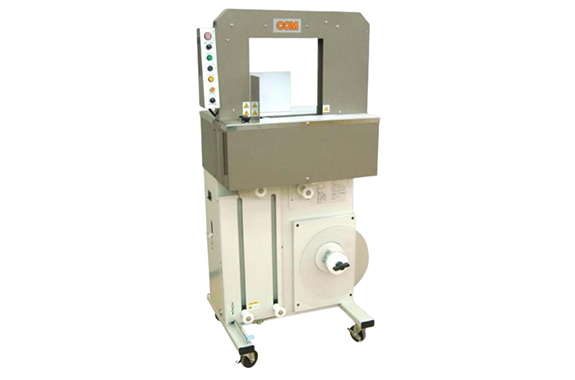

Taiyo Seiki WAS Series Automatic Taping Machine
Manufacturer: Taiyo Seiki
Model: WAS Series
Wide tape type
HIGH SPEED 150mm TAPING MACHINE IS AVAILABLE NOW.
FEATURES
- 150mm tape can be used.
- 30/50/75/100/150mm types are also ready.
- High speed even when using 40 microns tapes.
- Film and paper tapes can be used in one machine.
- High cost performance using 40 microns tape is assured.
(50% running cost saving compared with 100 microns tape machines)
(based on our data).
CAPABILITY
| Model | Arch size | Speed |
|---|---|---|
| WAS-250 | W250mmxH270mm | 22 cycles/minute |
| WAS-400 | W400mm><H270mm | 20 cycles/minute |
MACHINE SPECIFICATIONS
| Model Tape width (mm) | Width | Height | Depth | Table height | Power supply |
|---|---|---|---|---|---|
| WAS-250-30/50 | 614mm | 1292mm | 412mm | 926mm | 115V/220V/230V/240V 50Hz/60Hz |
| WAS-400-30/50 | 681mm | ||||
| WAS-250-75/100 | 614mm | 465mm | |||
| WAS-400-75/100 | 681mm | ||||
| WAS-250-150 | 614mm | 565mm | |||
| WAS-400-150 | 681mm |
COM TAPE SPECIFICATIONS
| Type | Width | Thickness |
|---|---|---|
| Paper | 30mm/50mm/75mm/100mm/150mm | 70g (brown)/80g (white) |
| Film | 30mm/50mm/75mm/100mm/150mm | 40/60/80/100 (micron) COM CUT 60 micron/MAGIC CUT 110 micron |
●Note: Use only the tapes supplied or approved by the machine manufacturer.
●Specifications subject to change without notice.
