TAKASHIMAKEIKI
TAKASHIMAKEIKI Marker Pointer
Manufacturer: TAKASHIMAKEIKI Co., Ltd.
Model : Marker pointer
Features
- A mark attached to know the management pressure at glance when pressure management being performed.
Spec
| Variation | Order Model Code | Size of Applicable Gauge | Color of Marker Pointer | Applications / Features |
|---|---|---|---|---|
| Label Type | F150, F520, F530, F540 | 40, 50, 60, 75, 100, 150 | Green × 2, Red × 2 | – Fixed type affixed on transparent plate of control valve. – Fixed type. – Multi-Marker Pointer possible. – Low cost. – Optimum for vibration. – Adaptive models not limited. |
| Ring Type | Fill in the color combination in the additional specification column when ordering because it is pre-set in the pressure gauge. For low pressure : Green(F6), Green(F6GR), Red(F6RR), Red(F6RG) For high pressure : Green(F6), Red(F6GR), Red(F6RR), Green(F6RG) | 40, 60, 75, 100 | (STD) Green, [Specified]: Combination of green and red | – A type setting the control value to rotate Marker Pointer on the circumference. One set to combine two. – Two-needle semi-movable type. – Ideal for pressure management of upper and lower limit. <Note>: Loosen and fix the ring set screw after setting to prevent movement of the Marker Pointer due to vibration. |
| Knob Type | Fill the symbol (F7) in the additional specification column when ordering the pressure gauge. It will be pre-set on gauge. | 50, 60, 75, 100, 150 | Red | – A type rotating center knob to set the control value. – 1 needle movable type. – Optimum when the control value changes every time. |
| Leave Behind Pointer Type | Fill the symbol (F7) in the additional specification column when ordering the pressure gauge. It will be pre-set on gauge. | 50, 60, 75, 100 | Red | – Equipped with a red maximum value indicator needle and when presseure drops, it stays at the highest value. – When pressure drops, the needle stays at its highest value. – Rest is done manually by turning the center knob. -Rest is done manually by turning the center knob. – Ideal for when you want to know the maximum pressure value. – Not compatible with negative pressure. |

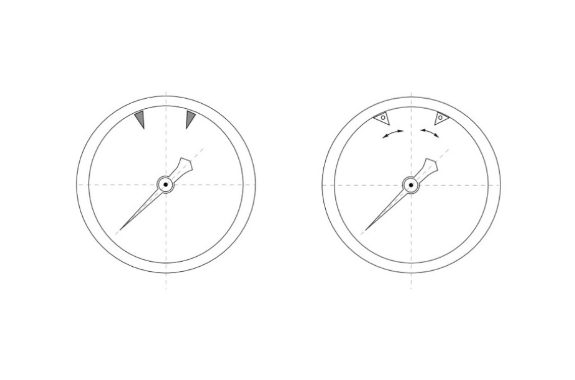

■Label Type
■Ring Type

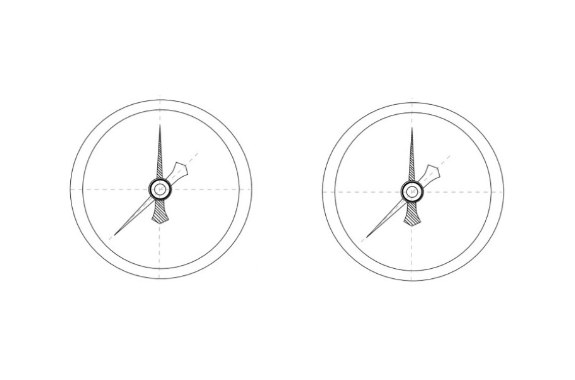

■Knob Type
■Leave Behind Pointer Type
