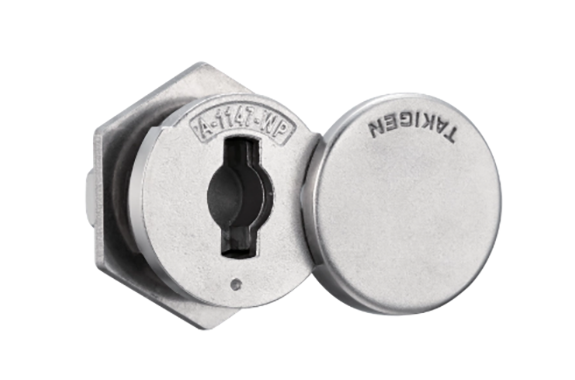

Takigen A-1147-WP Stainless Steel Waterproof Lock Handle Series
Manufacturer: TAKIGEN MFG.CO.,LTD.
Model: A-1147-WP
Waterproof standard equivalent to IPX5 (using O-ring and packing)
For both left and right use
A-1147-3-WP can be sealed.
Panel drilling dimensions are compatible with the conventional A-1147-1 and A-1147-3 models.
Specification
Material: Stainless steel casting (SUS316)
Surface finish: Electrolytic polishing
Applications
Outdoor distribution and control panels
Remarks
Key handles No. 0061-H and No. 0062-H are sold separately.
Tightening torque for the M8 nut used to install the stopper plate should be 6.2 N·m or less. (A-147-WP)
We recommend applying a “loosening prevention agent” to the screws used to install the stopper plate of this product to prevent them from coming loose.
