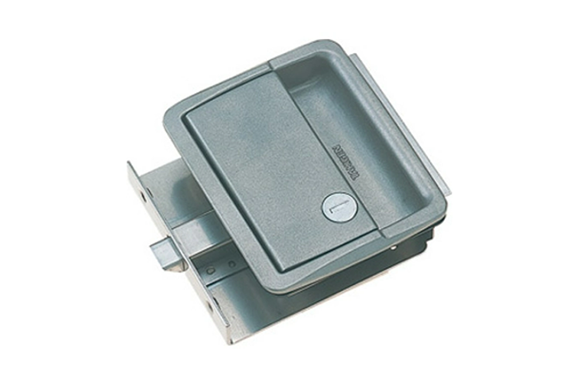

Takigen A-1151R-2 Stainless Steel Latch Type Flat Handle Series

Manufacturer: TAKIGEN MFG.CO.,LTD.
Model: A-1151R-2

This model features a soft, rounded design that gives it a clean and modern appearance. You can open and close it effortlessly with a simple one-touch action. It also shares dimensional compatibility with the A-151 series, making it easy to integrate into existing setups. To enhance performance, the structure includes both dust-proof and drip-proof features. Additionally, a front shutter comes as standard equipment, helping to improve dust resistance and protect the key area over time.

Specification

Material: Body/Stainless steel casting (SUS304)
Case/Stainless steel plate (SUS304)
Surface finish: Bead shot
Key number: 400
Applicable plate thickness: 1.2 to 3.0 mm
Accessories: Mounting plate, screw set, split pin, 2 keys

Applications

Special purpose vehicles, construction machinery, railway vehicles, buses

Remarks

Special striker A-151-ST-2 (page 454) is also available.
If the mounting hole of the latch cannot be used due to the door specifications, please use the setting plate attached as shown in the left photo (special order item). Additional processing is required on the handle body. Please contact us for details.
