Takigen

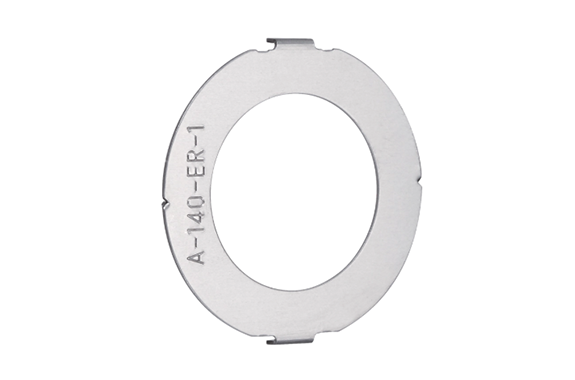

Takigen A-140-ER Stainless Steel Antistatic Fittings For Handles Series
Manufacturer: TAKIGEN MFG.CO.,LTD.
Model: A-140-ER
You can use this component with both the A-1140 and plated A-140 series handles.
It discharges static electricity from the user through the handle, which helps protect internal equipment from potential damage.
By attaching it directly to the handle, you create electrical conductivity to the painted panel, ensuring a simple and effective grounding solution.
Specification
Material: Stainless steel strip for springs (SUS304-CSP)
Surface finish: Plain
Applications
Distribution boards, control panels, server racks
Remarks
Avoid using this component with painted handles, as it may not function properly.
The conductivity effect can vary based on factors such as paint hardness, film thickness, and surface finish of the panel.
For best results, test the conductivity after installation to ensure proper performance.
Also, connect the door to ground securely to complete the circuit and maintain safety.
Since the product includes sharp sections as part of its design, handle it with care during installation to prevent injury.
