Takigen
Takigen A-154-NC Sliding Door Flat Handle Series
Manufacturer: TAKIGEN MFG.CO.,LTD.
Model: A-154-NC
Soft design with curves all over.
Can be opened and closed with one action, and has a dustproof structure with rubber packing.
Flat type with few protrusions from the door surface.
Compatible with A-154-C for installation.

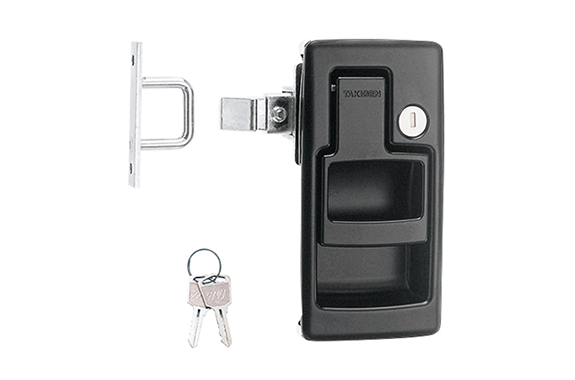

For right-hand and left-hand opening (This drawing and photo are for right-hand opening.)
Specification
Material: Zinc alloy (ZDC)
Surface finish: Baked paint
Standard color: Black
Key number: 0200
Maximum applicable plate thickness: A-154-NCL/1.5mm, A-154-NCR/1.0mm
Accessories: 2 keys, catch
Purpose
Vehicle doors and various sliding doors
Remarks
For latch handles of the same design, please refer to page 450, and for snatch handles, please refer to page 467.
The hook is provisionally tightened, so please adjust it before tightening.
We can also manufacture products with the same specified number but different keys.
The panel drilling dimensions, keys, and strikers are the same for both the left and right.
For long-term use, regularly apply high-performance lubricant C-985 (page 1438) to the sliding parts.
