Takigen

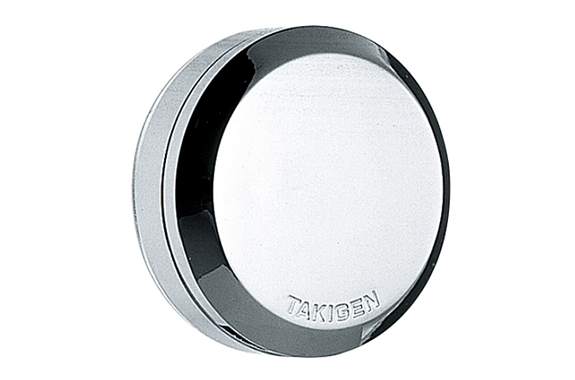

Takigen A-172 Waterproof Lock Handle Series
Manufacturer: TAKIGEN MFG.CO.,LTD.
Model: A-172
This waterproof model uses an O-ring and packing to provide reliable sealing. Additionally, it meets the IPX5 waterproof standard (A-172-3), making it suitable for use in wet environments. When you lock the unit, the built-in clutch mechanism firmly secures the stopper plate in place. Moreover, its versatile design allows for easy operation with either the left or right hand (A-172-3), ensuring greater flexibility in various applications
Specification
Material: Body/Zinc alloy (ZDC)
Surface finish: Body/Chrome plating (MZCr)
Maximum applicable plate thickness: A-172-1/4mm, A-172-3/9mm
(Use the included spacer for plate thicknesses of 2mm or less.)
Accessories: Large nuts and screws set
Applications
Distribution board/control board
Remarks
A-172-2 has been improved and changed to A-172-3.
Please contact us for special surface treatments.
We recommend applying a “loosening prevention agent” to the screws used to attach the stopper plate of this product to prevent them from loosening.
