Takigen

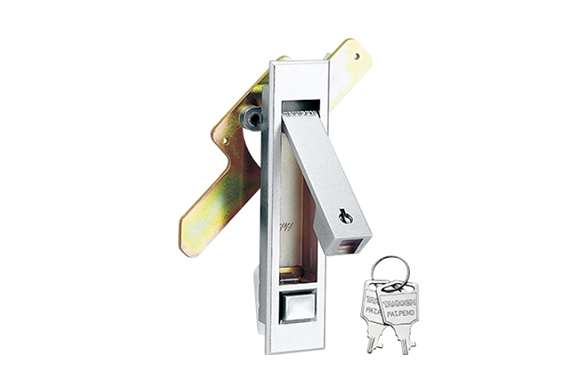

Takigen A-181 Flat Handle With Push Button Series
Manufacturer: TAKIGEN MFG.CO.,LTD.
Model: A-181
Can be used on both the left and right side (you can switch between left and right by flipping the clasp over).
Specification
Material: Zinc alloy (ZDC)
Finish: Matte chrome plating (MZCr)
Key number: 0050
Accessories: 2 keys, screw set, special stopper plate
Applications
Distribution board/control board
Remarks
For long-term use, periodically apply high-performance lubricant C-985 (page 1438) to the sliding parts.
The plate thickness can be increased by changing the mounting screws.
- A-181-1: 3mm (M5 x 8SW)
A-181-2/3: 2.5mm (M4 x 8SW)
Keyless versions are also available. (A-180 and A-181 are the same.)
We recommend applying a “loosening prevention agent” to the screws used to mount the stopper plate of this product to prevent them from loosening.
Please note that turning the key more than necessary may damage the lock and key tip.
