Takigen

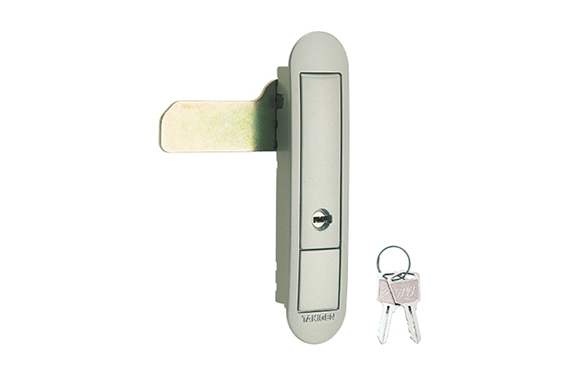

Takigen A-242-A Sliding Flat Handle Series
Manufacturer: TAKIGEN MFG.CO.,LTD.
Model: A-242-A
A slide mechanism is used in the rotation drive of the stopper plate to prevent accidents (galling phenomenon) when the stopper plate is under high load
Compatible with the flat handles of A-160, A-240, etc. and panel drilling dimensions.
Left and right compatible type (left and right can be switched by flipping the stopper plate.)
Specification
Material: Zinc alloy (ZDC)
Surface finish: Baked paint (pearl silver)
Key number: 0200
Maximum applicable plate thickness: 1.6mm
Accessories: 2 keys, screw set, special stopper plate
Applications
Various control panels and dust boxes
Remarks
The lock on this product is operated using the tip of the key.
Please note that turning the key more than necessary may damage the lock and tip of the key.
We recommend applying a “lock-prevention agent” to the screws used to attach the latch plate on this product to prevent them from loosening.
