Takigen

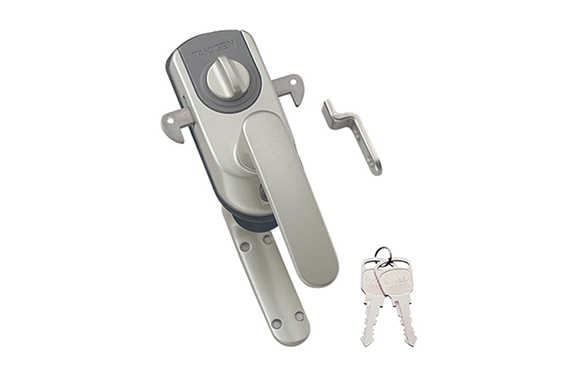

Takigen A-298 Double Sickle Handle (Double Sided Handle) Series
Manufacturer: TAKIGEN MFG.CO.,LTD.
Model: A-298
Acrylic resin baked coating provides excellent corrosion resistance.
Made of aluminum, it is lightweight.
Hooks on both sides allow you to fix the sliding door even when it is open.
Can be used on both the left and right side .
Specification
Material: Aluminum alloy (ADC)
Surface finish: Anti-rust treatment followed by acrylic resin baking paint
Key number: Different keys
Applicable door thickness: 25 to 30 mm
Accessories: Receptacle, 2 keys
Purpose
Boat sash sliding doors and ship doors
Remarks
Please contact us if the plate thickness is 30mm or more.
We can also manufacture the same key number.
Main body installation screws are not included.
Please use M5 flat head screws, 25mm long.
We recommend applying a “loosening prevention agent” to the main body installation screws and lever fixing screws to prevent them from loosening.
To ensure long service life, please apply high performance lubricant C-985 (page 1438) to the sliding parts regularly.
